YIJIANG designs and manufactures custom steel, rubber and hydraulic extendable crawler undercarriages for construction, drilling, mining, robotics and special machinery.
From prototype design to mass production, we deliver heavy-duty steel and rubber crawler chassis tailored to your specs. Get fully dimensioned 3D CAD drawings and technical proposals within 24 hours.
24h Engineering Response | 3D CAD Drawings & Proposals
MOQ = 1 Set Supported | Ideal for Prototyping & OEM Build
1 year or 1,000 working hours, whichever comes first | Full Technical & Spare Parts Support
ISO9001 Certified Factory | 20+ Years Direct Manufacturing
What Can Be Customized?
YIJIANG customizes crawler undercarriages around your machine's dimensions, load requirements, mounting interface, track system and operating conditions.
| Track Width & Length | Track width, track length and track center distance can be customized to match machine dimensions, ground pressure requirements and stability needs. Compact configurations are available for restricted spaces, while wider tracks can provide greater stability on soft or uneven ground. | Load Capacity | The undercarriage can be engineered according to the machine's operating weight, working load and weight distribution. Frame structure, rollers, track components and drive systems can be selected to meet the required load and operating conditions. |
| Mounting Interface | Mounting plates, bolt patterns, connection dimensions and other interface details can be customized to match your upper machine. YIJIANG can work from 2D drawings, 3D CAD files, PDF drawings or dimensional information. | Hydraulic Drive System | Hydraulic motors and drive configurations can be selected according to your required travel speed, hydraulic pressure and flow rate. If you already have a hydraulic circuit, provide its specifications so our engineers can evaluate compatibility. |
| Center Frame & Cross Structure | The center frame and cross structure can be customized according to the upper machine's dimensions, mounting position and load distribution. Structural dimensions and reinforcement can be adjusted for different equipment configurations and operating conditions. | Track Type | YIJIANG provides steel and rubber track configurations for different applications. Steel tracks are suitable for heavy-duty and high-load conditions, while rubber tracks can offer lower ground pressure, reduced vibration and better surface protection. |
| Ground Clearance | Ground clearance can be adjusted according to terrain, machine dimensions and obstacle clearance requirements. The crawler structure can be configured to provide the required clearance while maintaining suitable stability and overall machine dimensions. | Hydraulic Extension | Hydraulic extendable crawler undercarriages can provide a narrow transport width and a wider working stance. This configuration is suitable for equipment such as access platforms, drilling machines and special machinery operating in restricted spaces. |
Custom Crawler Undercarriage Solutions
YIJIANG provides three main custom crawler undercarriage solutions for different machine weights, working environments and mobility requirements. We can engineer rubber track, steel track and hydraulic extendable undercarriages according to your machine dimensions, load requirements, mounting interface and operating conditions.

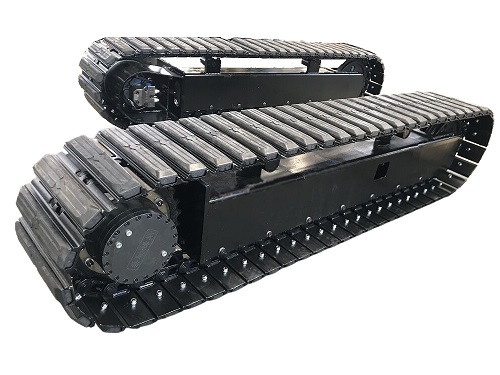

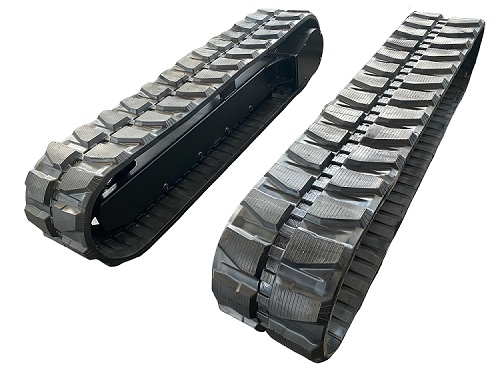

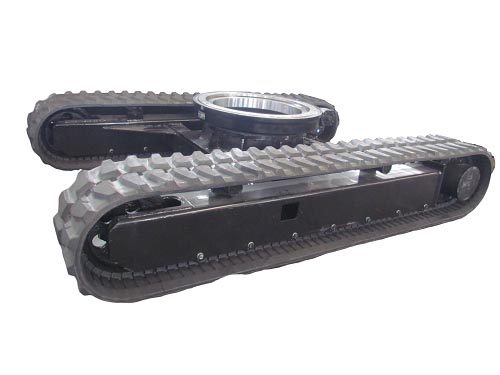

Custom Rubber Track Undercarriage

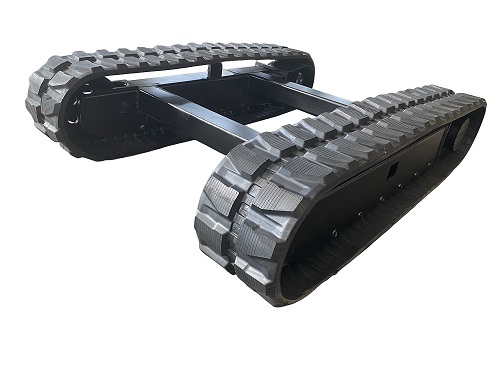

YIJIANG custom rubber track undercarriages are designed for equipment that requires lower ground pressure, reduced vibration and better protection of finished surfaces. Track width, track length, load capacity, mounting interface and hydraulic drive configuration can be customized according to your machine. They are suitable for access platforms, agricultural machinery, compact construction equipment, demolition robots and other specialized machines.
Recommended applications
- Access Platforms
- Agricultural Machinery
- Compact Construction Equipment

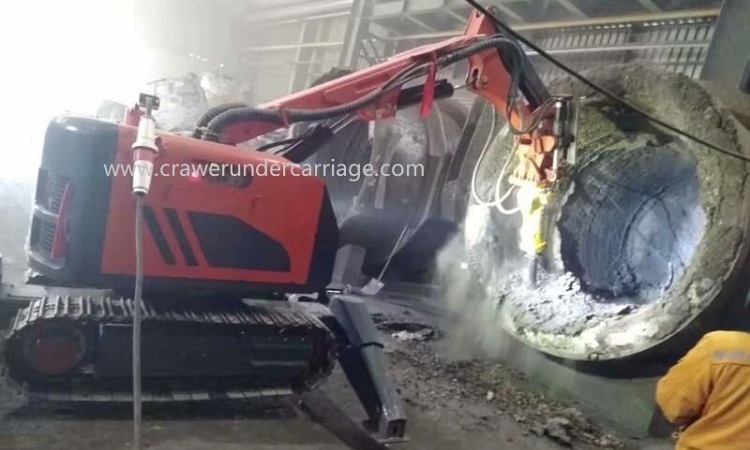

- Demolition Robots
- Special Machinery
Machine: Access Platform
Track Type: Rubber Track
Load Capacity: 5.5 t
Track Width: 350 mm
Drive: Hydraulic Motor
Machine: Green Bean Harvester
Track Type: Rubber Track
Load Capacity: 8 t
Track Width: 400 mm
Drive: Hydraulic Motor

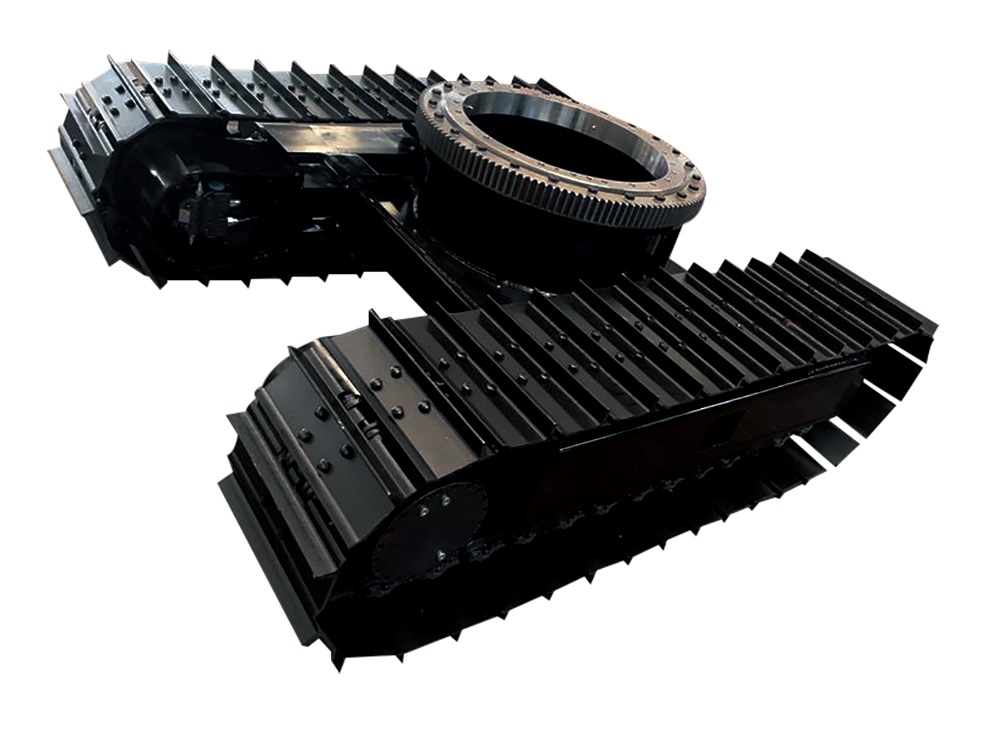

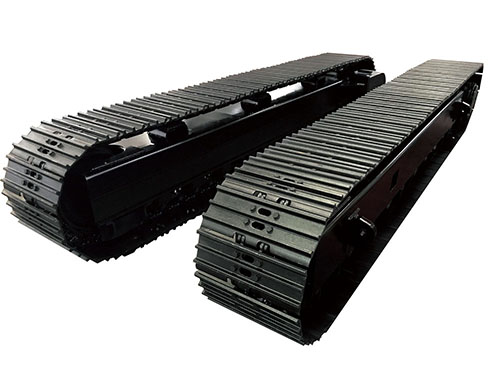

Custom Steel Track Undercarriage
YIJIANG custom steel track undercarriages are engineered for heavy-duty machines operating under high loads, rough terrain and demanding working conditions. Track dimensions, load capacity, ground clearance, mounting structure and hydraulic drive system can be designed to match the host machine. Steel track solutions are suitable for drilling rigs, mining equipment, mobile crushers, pile drivers and other heavy machinery.
Recommended applications
- Drilling Rigs
- Piling Equipment
- Mining Machinery
- Mobile Crushers
- Heavy Construction Equipment
- Special Machinery
Machine: Aggregate Conveyor
Track Type: Steel Track
Load Capacity: 35 t
Track Width: 500 mm
Drive: Hydraulic Motor

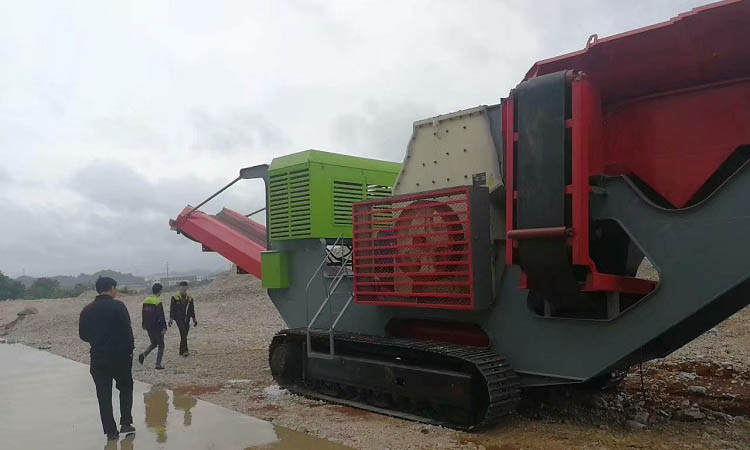

Machine: Mobile Crusher
Track Type: Steel Track
Load Capacity: 55 t
Track Width: 500 mm
Drive: Hydraulic Motor

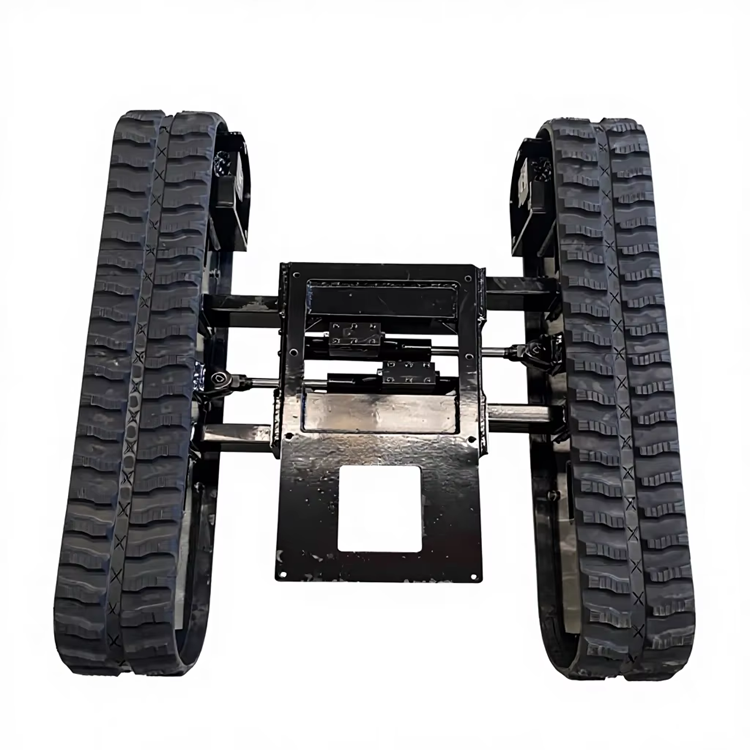

Hydraulic Extendable Crawler Undercarriage
YIJIANG hydraulic extendable crawler undercarriages are designed for machines that require a narrow transport width and a wider working stance. The track frames can hydraulically extend or retract according to transportation and operating requirements. This design allows equipment to remain compact during transportation while providing a wider support base and improved stability when deployed at the job site.
RETRACTED
┌──────────────┐
│ ← Narrow → │
└──────────────┘
↓
HYDRAULIC EXTENSION
← Travel →
↓
EXTENDED
┌────────────────────┐
│ ← Wider Working → │
└────────────────────┘
Hydraulic Extendable Undercarriage Parameters
| Parameter | Customization |
|---|---|
| Track Type | Rubber or Steel Track |
| Transport Width | Customized according to machine requirements |
| Working Width | Customized according to stability requirements |
| Extension Travel | 200 - 500 mm |
| Load Capacity | Customized according to machine weight and working load |
| Track Width | Customized |
| Track Length | Customized |
| Hydraulic Drive | Customized hydraulic travel motors |
| Hydraulic Extension | Hydraulic cylinders |
| Mounting Interface | Custom-designed |
| Ground Clearance | Customized |
| Hydraulic Connections | Customized according to machine system |
What Information Do We Need for a Custom Crawler Undercarriage?
- Machine Type
- Machine Weight & Load Capacity
- Overall Dimensions
- Mounting Dimensions
- Track Width & Ground Clearance
- Travel Speed & Gradeability
- Hydraulic System Requirements
- Working Environment
- CAD Drawings or Machine Photos
Don't have complete drawings? No problem. Send us your machine dimensions, photos or basic specifications. Our engineers can help determine the remaining requirements.
Custom Crawler Undercarriage Technical Parameters
| Parameter | Customization |
|---|---|
| Application | Construction / Drilling / Mining / Robotics / Agriculture / Special Machinery |
| Track Type | Steel / Rubber |
| Load Capacity | 0.8T – 120T |
| Track Width | Custom |
| Track Length | Custom |
| Track Center Distance | Custom |
| Ground Clearance | Custom |
| Overall Dimensions | Custom |
| Mounting Interface | Custom |
| Drive System | Hydraulic / Electric / Custom |
| Travel Speed | Custom |
| Gradeability | Application dependent |
| Center Frame | Custom |
| Hydraulic Extension | Available |
| CAD Drawings | 2D / 3D |
| MOQ | 1 Set |
| Lead Time | Typically 25–45 days for customized projects |
| Warranty | 1 year or 1,000 working hours, whichever comes first |
Steel vs. Rubber Track Undercarriage
| Feature | Steel Track | Rubber Track |
|---|---|---|
| Heavy Loads | Excellent | Good |
| Rocky Terrain | Excellent | Good |
| Ground Protection | Moderate | Excellent |
| Vibration | Higher | Lower |
| Mining | Excellent | Application Dependent |
| Drilling | Excellent | Application Dependent |
| Agriculture | Limited | Excellent |
| Robotics | Application Dependent | Excellent |
Not sure which track type is right for your machine? Send us your machine specifications and working conditions
Custom Crawler Undercarriage Design & Manufacturing Process
Step Descriptions:
1. Requirements Analysis: Initial consultation regarding payload, working speed, hydraulic power, and transport limits.
2. Engineering Proposal: Our technical team evaluates your machine parameters and presents a custom structural proposal.
3. 3D CAD & Drawing Approval: Detailed 3D models and mounting interface drawings are generated for your final sign-off.

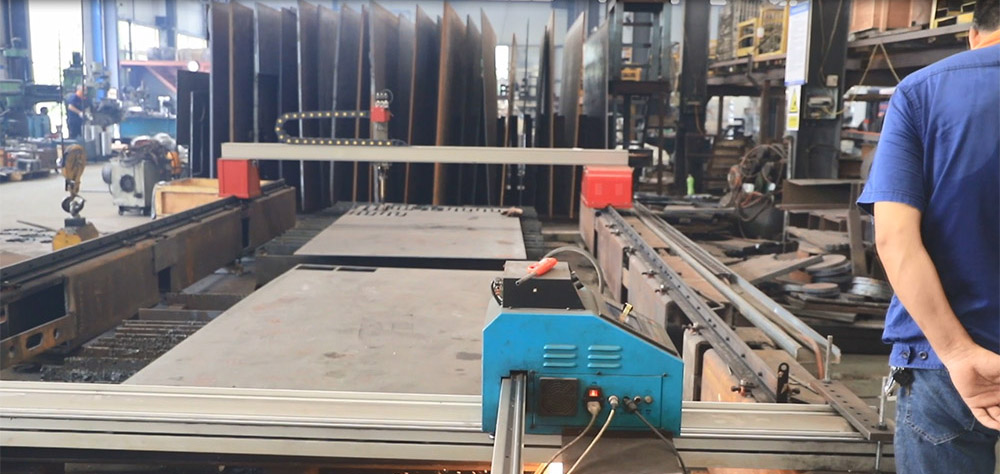

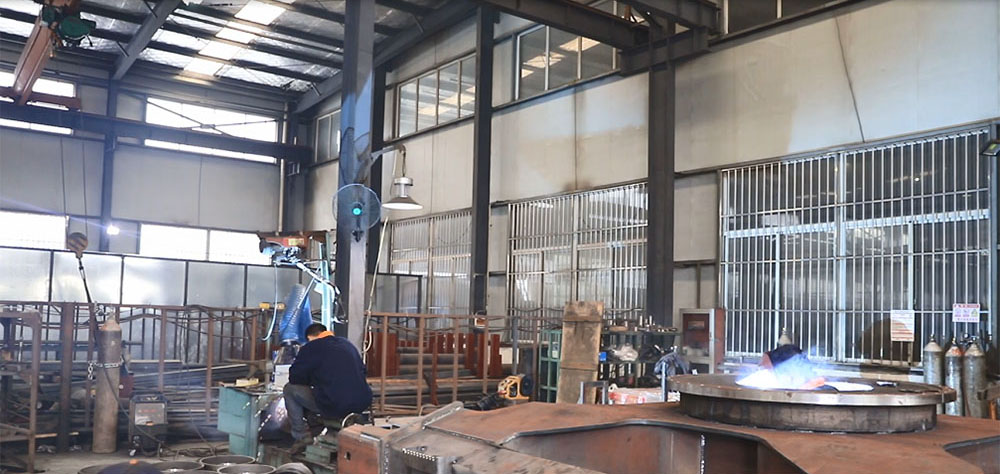

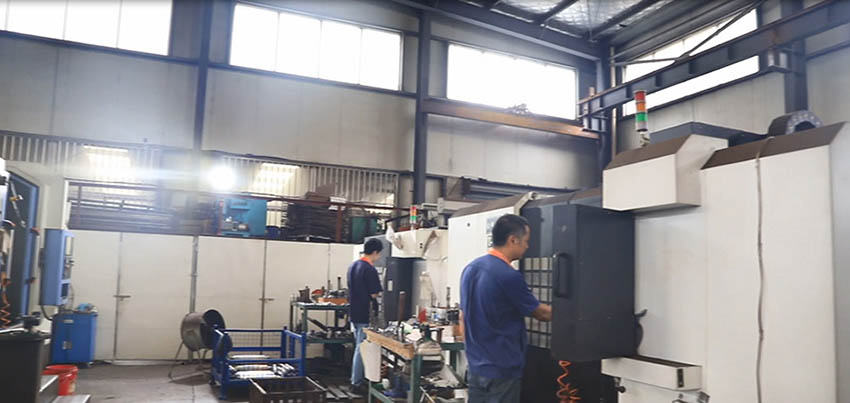

4. Precision Manufacturing: State-of-the-art CNC cutting, high-strength manual welding, and precision machining.

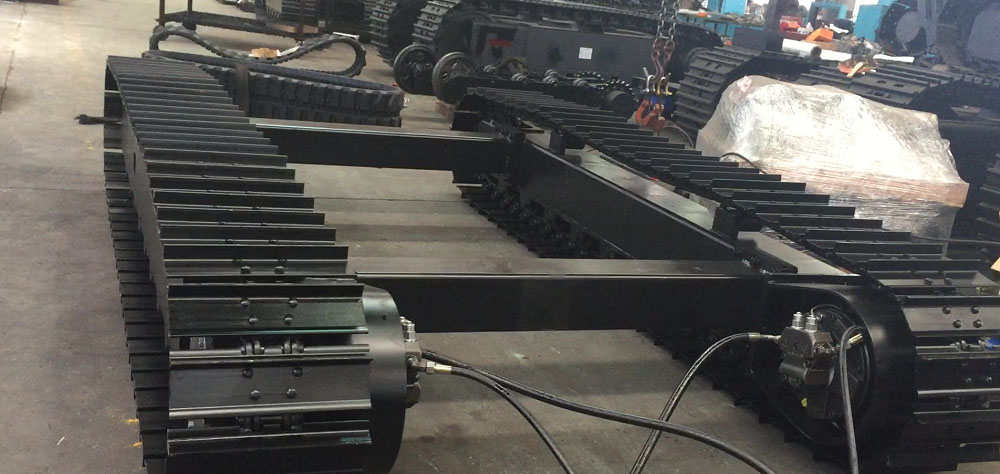

5. 100% Quality Testing: Rigorous load testing, hydraulic leak checks, and travel alignment verification before delivery.

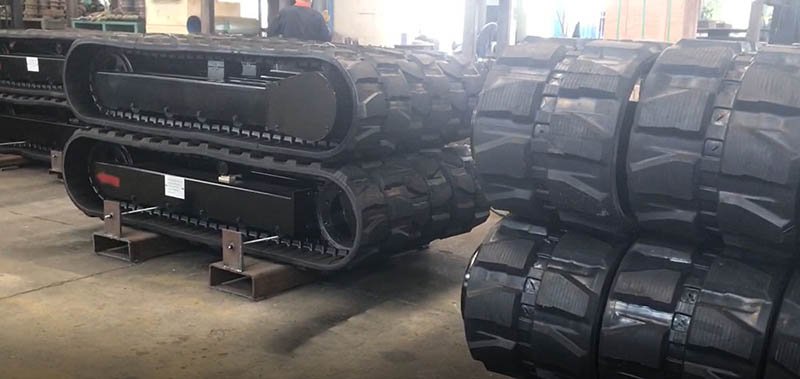

6. Global Delivery & Support: Export-standard wooden box packaging with lifetime technical and spare parts assistance.
Why Choose YIJIANG for Custom Crawler Undercarriages?
Our manufacturing and inspection processes are designed to provide reliable structural performance under the specified operating conditions.
20+ Years of Crawler Undercarriage Manufacturing
Custom Engineering & CAD Support
Prototype and OEM Production
0.8T–120T Load Capacity Range
Quality Testing Before Shipment
MOQ from 1 Set
Reply your inquiry in 24 working hours
Our product: insist on quality first the production standard support factory and products inspection
Our service: perfect after-sales service and professional team
Company strength: Short lead time and fast delivery flexible payment terms
Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and taffs
One-stop solution a complete category includes all that you need
Custom Crawler Undercarriage Projects
Engineered for Extreme Applications Worldwide
Application Item Descriptions:
-
Drilling & Piling Rigs: Reinforced structural frame designed to withstand heavy vibration and torque during deep drilling.
-
Mobile Crushers & Mining: Heavy-duty 40T–120T steel track chassis built for rocky terrains and continuous shock loads.
-

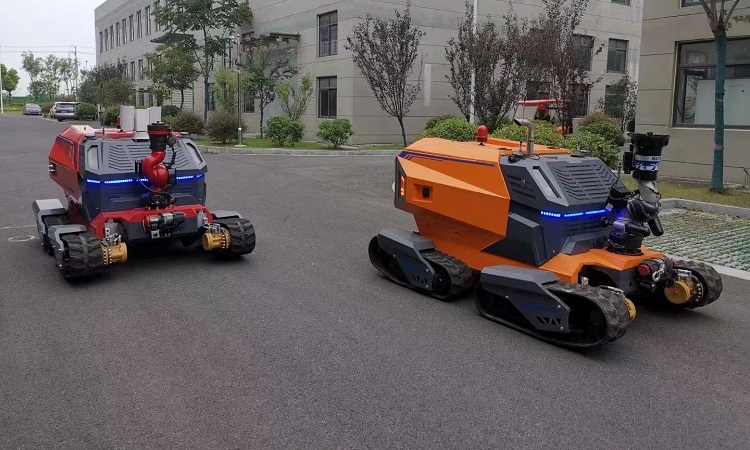

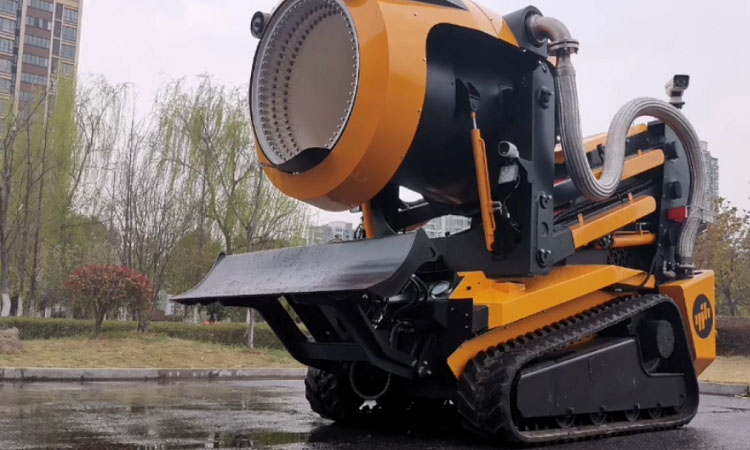

Specialized Robotics & Firefighting: Compact rubber track chassis integrated with wireless drive modules and high slope-climbing capability.
-
Agricultural & Harvesting Machinery: Non-marking or wide-footprint rubber tracks designed to minimize soil compaction.
- Special Machinery: Custom crawler undercarriages can be engineered for specialized equipment with unique dimensions, mounting requirements, load conditions or mobility needs.
FAQs
Q1: Can you customize a crawler undercarriage?
A: Yes. YIJIANG can design and manufacture custom crawler undercarriages based on your machine requirements, installation dimensions, load capacity, operating conditions, and application. We can customize track width and length, mounting interfaces, center frames, hydraulic drive systems, ground clearance, hydraulic extension, and track type. Our engineering team can also develop the undercarriage according to your machine drawings or technical specifications.
Q2: What information do you need for a custom crawler undercarriage?
A: To design a suitable crawler undercarriage, we normally need the machine weight, required load capacity, overall dimensions, track width and length, mounting interface dimensions, ground clearance, travel speed, operating environment, and hydraulic system requirements. Machine drawings, 3D models, or photos with key dimensions are also helpful. Based on this information, we can recommend the appropriate structure, track system, and drive configuration.
Q3: Can you manufacture a crawler undercarriage according to our drawings?
A: Yes. YIJIANG can manufacture crawler undercarriages according to customer-provided drawings, technical specifications, or 3D models. Our engineering team reviews the mounting dimensions, structural requirements, load conditions, hydraulic configuration, and manufacturing details before production. If necessary, we can also modify or optimize the design to improve structural strength, installation compatibility, and operating performance.
Q4: Can I order one custom crawler undercarriage?
A: Yes. YIJIANG accepts orders for one custom crawler undercarriage. Our MOQ is 1 set, making us suitable for prototype machines, special-purpose equipment, machine modifications, R&D projects and small production runs. For larger quantities, we can also provide customized OEM production and long-term supply solutions.
Q5: How long does a customized crawler undercarriage take?
A: Customized crawler undercarriages typically take 25 - 45 days to manufacture, depending on the design complexity, hydraulic configuration, component availability and order quantity. After reviewing your technical requirements, YIJIANG will confirm the estimated lead time before production.
Q6: What is the load capacity of your crawler undercarriages?
A:The load capacity of a crawler undercarriage is determined by its frame structure, track size, roller configuration, drive system, ground conditions, and operating requirements. YIJIANG designs crawler undercarriages for different equipment weights and applications, including drilling rigs, excavators, mobile crushers, access platforms, demolition robots, and special machinery. We can calculate and configure the undercarriage according to your required static and working load.
Q7: Should I choose a steel or rubber track undercarriage?
A: The choice depends mainly on the operating environment, machine weight, ground conditions, and mobility requirements. Steel track undercarriages are generally preferred for heavy-duty applications, rough terrain, high loads, and demanding working conditions. Rubber track undercarriages provide lower ground pressure, reduced surface damage, lower vibration, and better suitability for sensitive or finished surfaces. YIJIANG can recommend the appropriate track type based on your machine and application.
Q8: Do you provide technical support after delivery?
A: Yes. YIJIANG provides technical support after delivery to help customers with installation, hydraulic connections, operation, maintenance, and troubleshooting. Our technical team can provide relevant technical documents and guidance based on the supplied undercarriage configuration. For customized projects, we can also support customers with installation and application-related technical questions to help ensure reliable operation of the crawler undercarriage.
Have a Custom Crawler Undercarriage Requirement?
Send us your machine specifications, dimensions, drawings or photos. Our engineering team will review your requirements and recommend a suitable crawler undercarriage configuration.
