Excavator parts rubber track undercarriage with rotary system for 5-20 tons crane

Short Description:

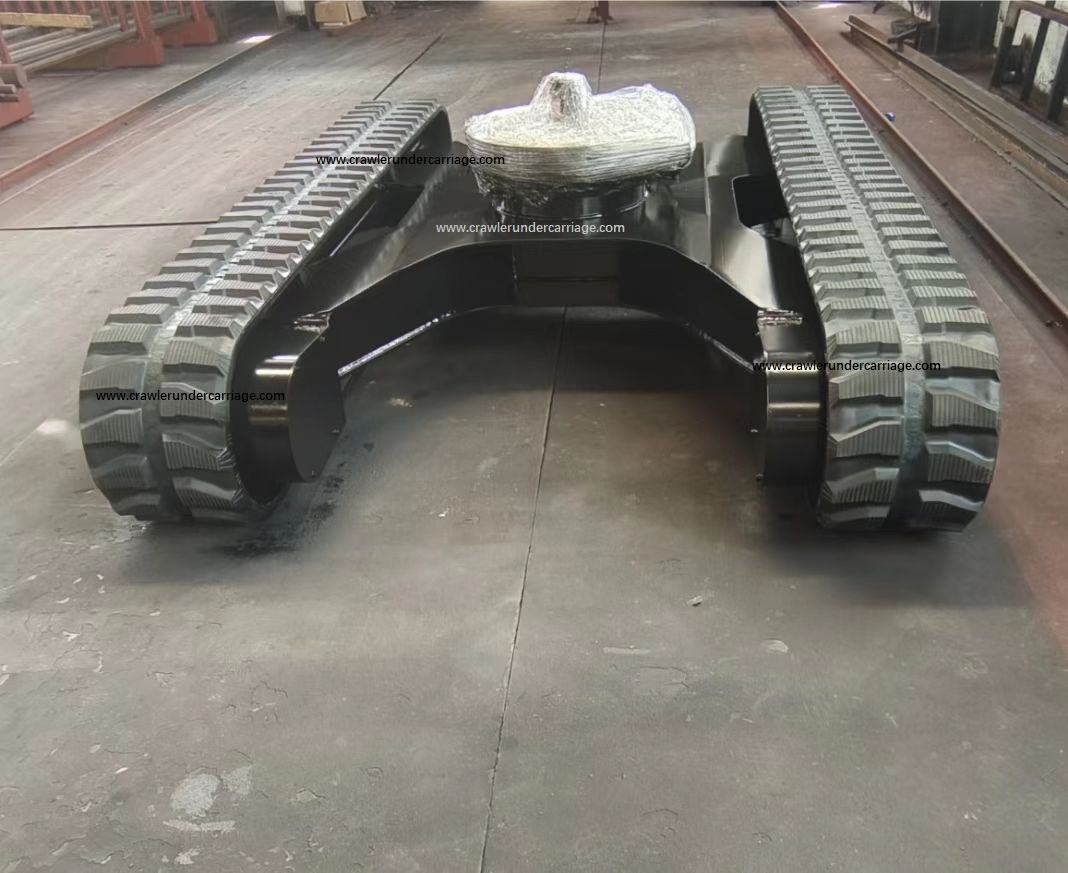

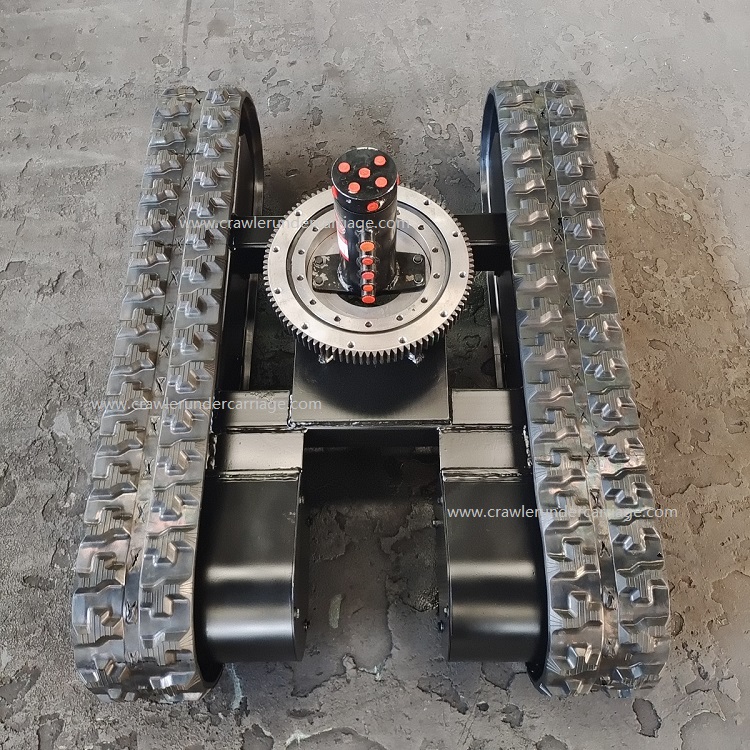

The tracked undercarriage with the rotation device combines the stability of the tracked walking device and the flexibility of the assembly platform, and can be applied in various mechanical fields, such as excavators, cranes, rotary drilling RIGS, mining machinery, agricultural machinery, special vehicles and industrial robots, etc.
Its core advantage lies in adapting to complex terrains, providing stable support, and allowing the equipment to perform 360-degree rotation operations at a fixed position.

The product can be customized in design, The load-bearing capacity of the rubber undercarriage is 1 to 20 tons, and that of the steel undercarriage is 1 to 60 tons

Send email to us

Product Detail

Product Tags

Yijiang company can custom Rubber and Steel Track Undercarriage for your machine

Yijiang crawler undercarriage reduces damage to the ground.

Yijiang's customized rubber track undercarriage is suitable for soft soil, sandy terrain, rugged terrain, muddy terrain, and hard terrain. The rubber track has a large contact area, reducing damage to the ground. Its wide applicability makes the rubber track undercarriage an important part of various types of engineering and agricultural machinery, providing reliable protection for operations in complex terrain.

Why choose Yijiang rubber track undercarriage?

Yijiang always insists on providing high-quality products to all customers. In order to pursue this result, the Yijiang team has developed and produced a variety of high-quality rubber track undercarriages, strictly controlling the quality of materials and components to ensure the following advantages:

High reliability and durability.

Can travel on surfaces that wheeled machines cannot reach.

What machines can it be used on?

To meet the needs of professional operators in different industries, Yijiang produces rubber track undercarriages for a wide range of machines. The most widely used industries are the industrial and agricultural sectors. More specifically, they can be installed on the following types of machines:

Engineering machinery: Excavators, loaders, bulldozers, drilling rigs, cranes, aerial work platforms and other engineering machinery, etc.

Agricultural machinery field: Harvesters, crushers, composters, etc.

Why do people choose tracked undercarriage?

Rubber track undercarriages are suitable for many different applications, including special fields such as construction machinery, agricultural machinery, urban construction, oil field exploration, environmental cleaning, etc. Its excellent elasticity and seismic resistance, as well as its adaptability to irregular terrain, make it play an important role in various fields and improve the driving stability and working efficiency of mechanical equipment.

Parameter

standard specification of rubber undercarriage 02

See the full table here

Type	Parameters（mm)				Climbing Ability	Travel Speed（km/h）	Bearing(Kg)
Type	A	B	C	D	Climbing Ability	Travel Speed（km/h）	Bearing(Kg)
SJ80A	1200	860	180	340	30°	2-4	800
SJ100A	1435	1085	200	365	30°	2-4	1500
SJ200A	1860	1588	250	420	30°	2-4	2000
SJ250A	1855	1630	250	412	30°	2-4	2500
SJ300A	1800	1338	300	485	30°	2-4	3000
SJ400A	1950	1488	300	485	30°	2-4	4000
SJ500A	2182	1656	350	540	30°	2-4	5000-6000
SJ700A	2415	1911	300	547	30°	2-4	6000-7000
SJ800A	2480	1912	400	610	30°	2-4	8000-9000
SJ1000A	3255	2647	400	653	30°	2-4	10000-13000

Design Optimization

1. The design of crawler undercarriage needs to fully consider the balance between material stiffness and load-bearing capacity. Generally, steel thicker than the load-bearing capacity is selected, or reinforcing ribs are added at key locations. Reasonable structural design and weight distribution can improve the handling stability of the vehicle;

2. According to the requirements of your machine's upper equipment, we can customize the crawler undercarriage design suitable for your machine, including load-bearing capacity, size, intermediate connection structure, lifting lugs, crossbeams, rotating platform, etc., to ensure that the crawler chassis matches your upper machine more perfectly;

3. Fully consider the later maintenance and care to facilitate disassembly and replacement;

4. Other details are designed to ensure that the crawler undercarriage is flexible and convenient to use, such as motor sealing and dustproof, various instruction labels, etc.

Packaging & Delivery

YIKANG track undercarriage packing: Steel pallet with wrapping fill, or Standard wooden pallet.

Port: Shanghai or custom requirements

Mode of Transportation: ocean shipping, air freight, land transportation.

If you finish the payment today, your order will ship out within the delivery date.

Quantity(sets)	1 - 1	2 - 3	>3
Est. Time(days)	20	30	To be negotiated

One- Stop Solution

If you need other accessories for rubber track underarriage, such as rubber track, steel track, track pads, etc., you can tell us and we will help you purchase them. This not only ensures the quality of the product, but also provides you with one-stop service.
