Spider lift parts custom rubber track undercarriage system for 2-3 tons small elevators

Short Description:

The small lift tracked undercarriage is a special equipment designed for narrow Spaces, complex terrains and high mobility requirements. It integrates the vertical operation capability of the lift platform with the strong adaptability of the track chassis, and has a wider range of application scenarios. For instance, in various aspects such as architectural decoration and maintenance, equipment installation and repair, landscaping and municipal engineering, disaster rescue and emergency repair, film and television stage construction, warehousing and logistics, etc

The superior performance of crawler undercarriage is mainly reflected in: ground protection, climbing ability, flexible steering, and terrain adaptability (mud, sand, steps, broken roads, etc.)


Product Detail

Product Tags

Yijiang company can custom Rubber and Steel Track Undercarriage for your machine

Yijiang crawler undercarriage reduces damage to the ground.

Yijiang's customized rubber track undercarriage is suitable for soft soil, sandy terrain, rugged terrain, muddy terrain, and hard terrain. The rubber track has a large contact area, reducing damage to the ground. Its wide applicability makes the rubber track undercarriage an important part of various types of engineering and agricultural machinery, providing reliable protection for operations in complex terrain.

Why choose Yijiang rubber track undercarriage?

Yijiang always insists on providing high-quality products to all customers. In order to pursue this result, the Yijiang team has developed and produced a variety of high-quality rubber track undercarriages, strictly controlling the quality of materials and components to ensure the following advantages:

High reliability and durability.

Can travel on surfaces that wheeled machines cannot reach.

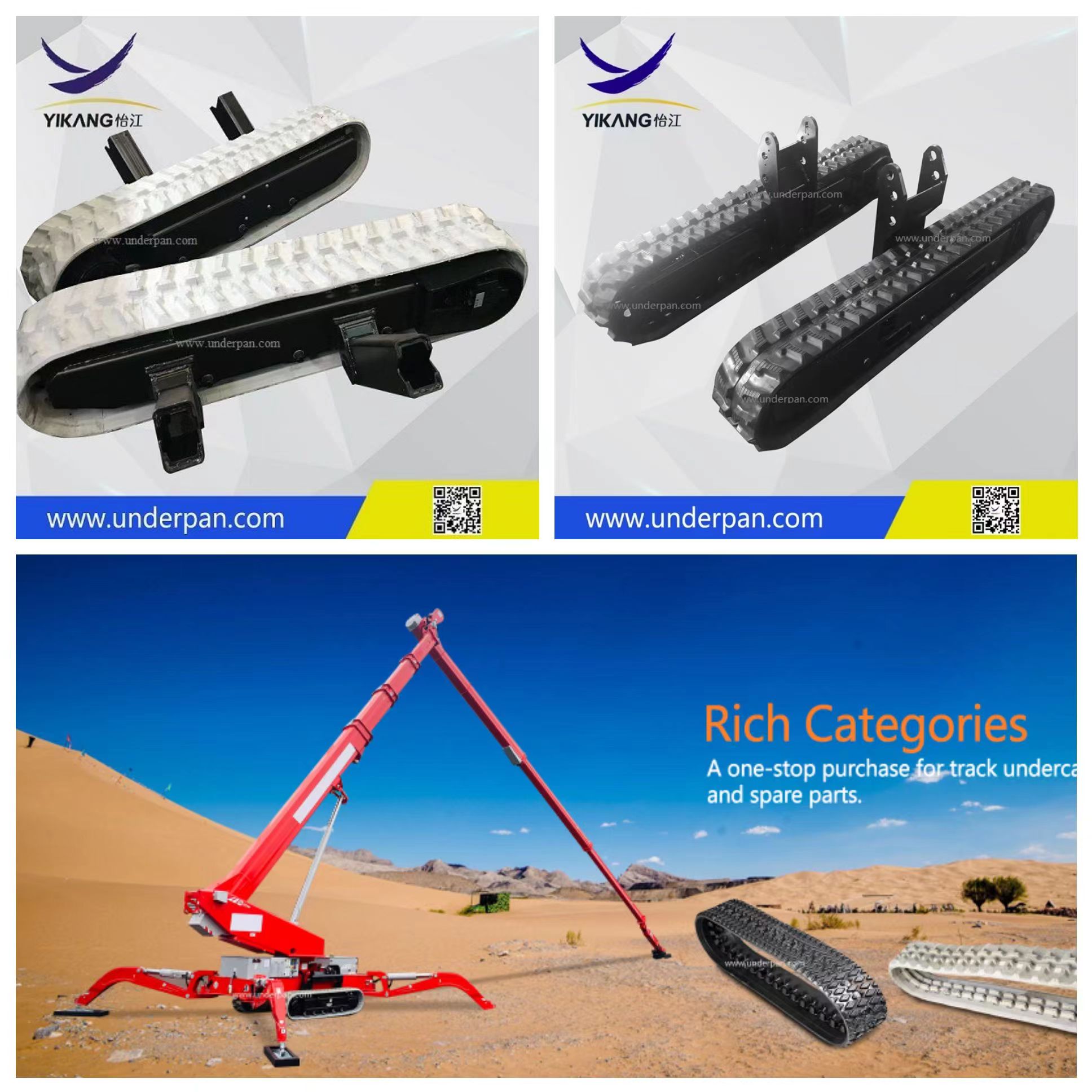

1 lift undercarriage

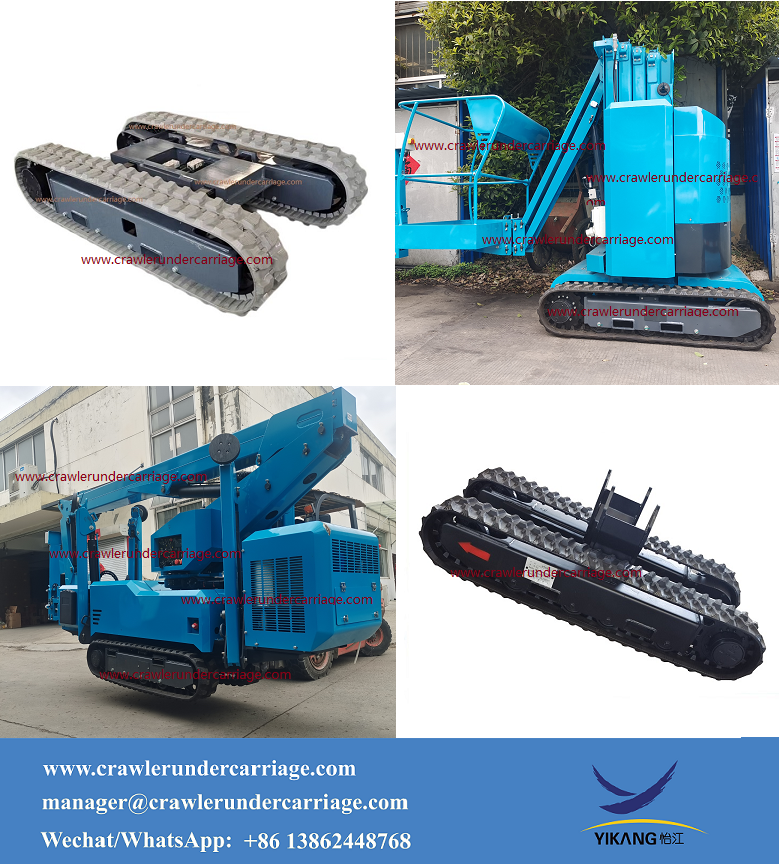

Small crane undercarriage

What machines can it be used on?

To meet the needs of professional operators in different industries, Yijiang produces rubber track undercarriages for a wide range of machines. The most widely used industries are the industrial and agricultural sectors. More specifically, they can be installed on the following types of machines:

Engineering machinery: Excavators, loaders, bulldozers, drilling rigs, cranes, aerial work platforms and other engineering machinery, etc.

Agricultural machinery field: Harvesters, crushers, composters, etc.

Why do people choose tracked undercarriage?

Rubber track undercarriages are suitable for many different applications, including special fields such as construction machinery, agricultural machinery, urban construction, oil field exploration, environmental cleaning, etc. Its excellent elasticity and seismic resistance, as well as its adaptability to irregular terrain, make it play an important role in various fields and improve the driving stability and working efficiency of mechanical equipment.

Parameter

Type Parameters(mm) Climbing Ability         Travel Speed(km/h)  Bearing(Kg)
A B C D
SJ80A 1200 860 180 340 30° 2-4 800
SJ100A 1435 1085 200 365 30° 2-4 1500
SJ200A 1860 1588 250 420 30° 2-4 2000
SJ250A 1855 1630 250 412 30° 2-4 2500
SJ300A 1800 1338 300 485 30° 2-4 3000
SJ400A 1950 1488 300 485 30° 2-4 4000
SJ500A 2182 1656 350 540 30° 2-4 5000-6000
SJ700A 2415 1911 300 547 30° 2-4 6000-7000
SJ800A 2480 1912 400 610 30° 2-4 8000-9000
SJ1000A 3255 2647 400 653 30° 2-4 10000-13000

Design Optimization

1. The design of crawler undercarriage needs to fully consider the balance between material stiffness and load-bearing capacity. Generally, steel thicker than the load-bearing capacity is selected, or reinforcing ribs are added at key locations. Reasonable structural design and weight distribution can improve the handling stability of the vehicle;

2. According to the requirements of your machine's upper equipment, we can customize the crawler undercarriage design suitable for your machine, including load-bearing capacity, size, intermediate connection structure, lifting lugs, crossbeams, rotating platform, etc., to ensure that the crawler chassis matches your upper machine more perfectly;

3. Fully consider the later maintenance and care to facilitate disassembly and replacement;

4. Other details are designed to ensure that the crawler undercarriage is flexible and convenient to use, such as motor sealing and dustproof, various instruction labels, etc.

custom rubber undercarriage platform

Packaging & Delivery

YIJIANG Packaging

YIKANG track undercarriage packing:  Steel pallet with wrapping fill, or Standard wooden pallet.

Port:  Shanghai or custom requirements

Mode of Transportation: ocean shipping, air freight, land transportation.

If you finish the payment today, your order will ship out within the delivery date.

Quantity(sets) 1 - 1 2 - 3 >3
Est. Time(days) 20 30 To be negotiated

One- Stop Solution

If you need other accessories for rubber track underarriage, such as rubber track, steel track, track pads, etc., you can tell us and we will help you purchase them. This not only ensures the quality of the product, but also provides you with one-stop service.
