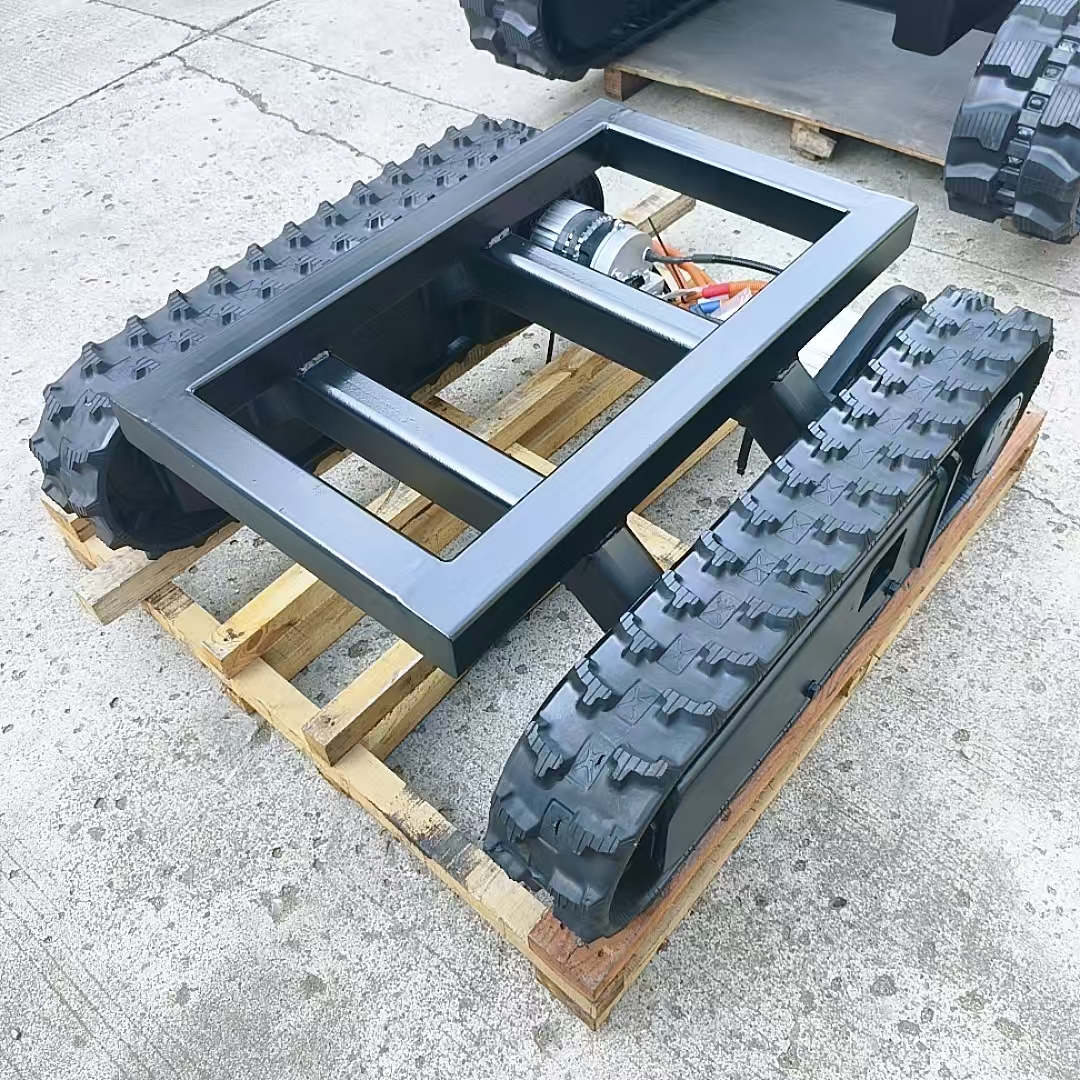

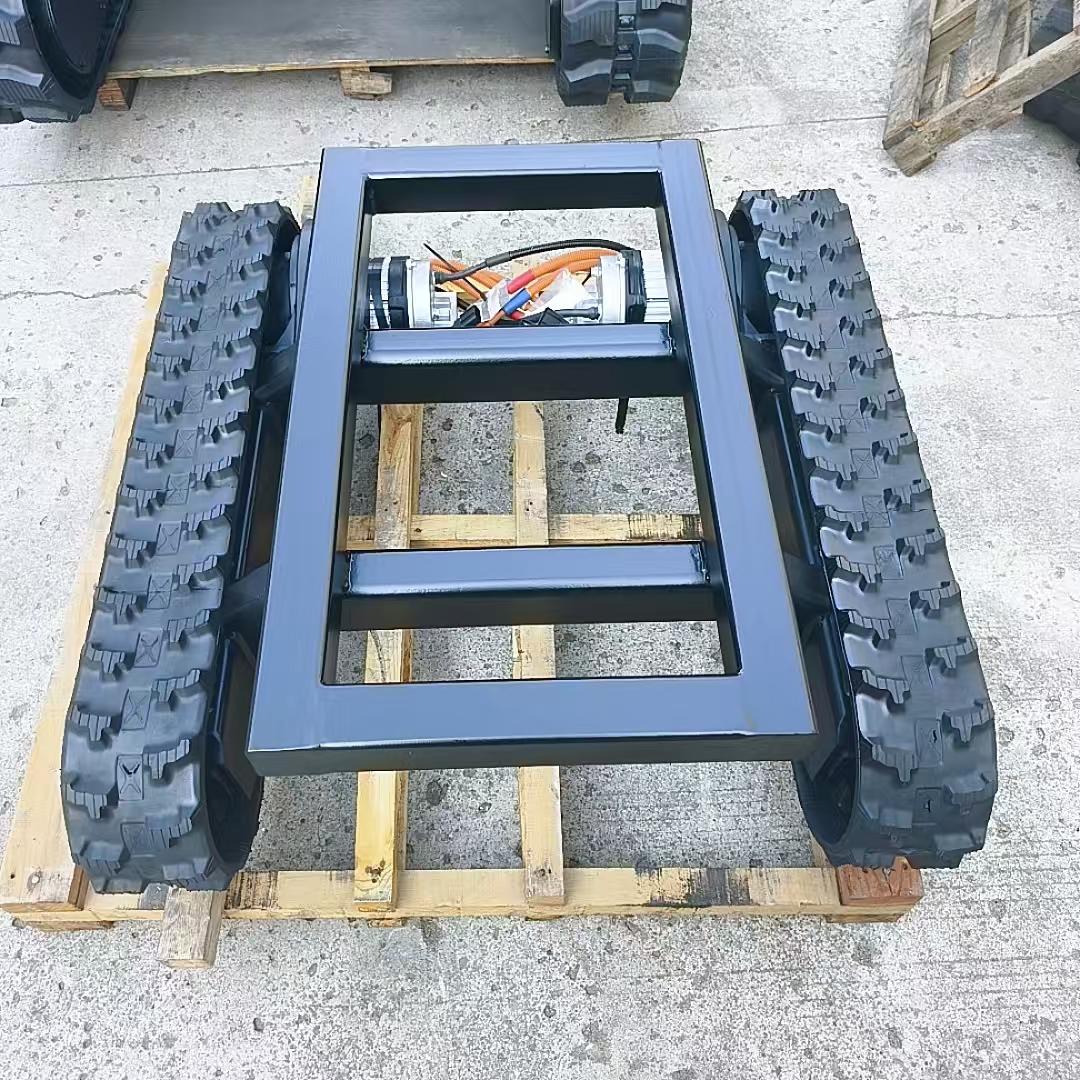

Custom electric motor chassis tracked undercarriage for farming robot
Yijiang company can custom Rubber and Steel Track Undercarriage for your machine
Crawler Tracked UndercarriageCustomization Experts: Every One is Unique
In the core field of construction machinery, universal standards often mean compromise, while customization represents the ultimate pursuit of efficiency. We deeply understand the demanding requirements of different operating environments on undercarriage, therefore we reject assembly-line uniformity.
Yijiang core advantages:
• Tailor-made to your needs: Whether it's load capacity, track gauge, or special ground clearance, we precisely match each chassis to your specific working conditions and superstructure requirements.
• Unique design: Each undercarriage undergoes independent research and development and structural optimization to ensure a perfect balance between the power system and the running gear.
• Superior environmental adaptability: We offer exclusive material and track type options for extreme working conditions such as swamps, mountains, and mines.
We don't produce generic products; we only create custom mobile bases for you. From blueprint to solid implementation, we give your machinery a unique competitive advantage, ensuring every need is precisely addressed.
What machines can it be used on?
To meet the needs of professional operators in different industries, Yijiang produces rubber track undercarriages for a wide range of machines. The most widely used industries are the industrial and agricultural sectors. More specifically, they can be installed on the following types of machines:
Engineering machinery: Excavators, loaders, bulldozers, drilling rigs, cranes, aerial work platforms and other engineering machinery, etc.
Agricultural machinery field: Harvesters, crushers, composters, etc.
Why do people choose tracked undercarriage?
Rubber track undercarriages are suitable for many different applications, including special fields such as construction machinery, agricultural machinery, urban construction, oil field exploration, environmental cleaning, etc. Its excellent elasticity and seismic resistance, as well as its adaptability to irregular terrain, make it play an important role in various fields and improve the driving stability and working efficiency of mechanical equipment.
Parameter

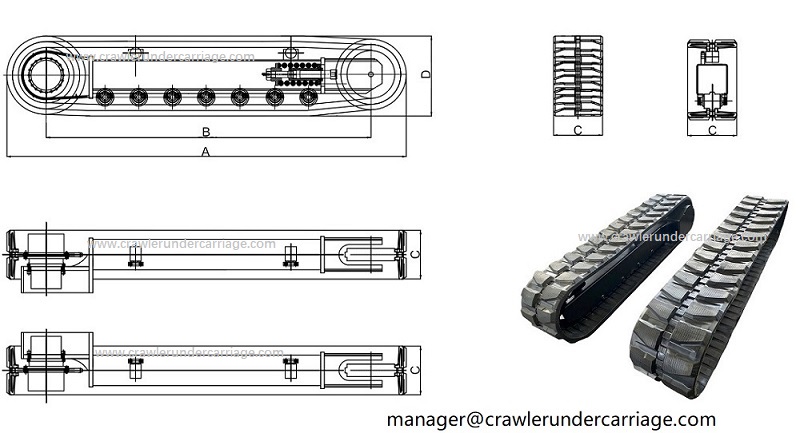

This drawing and specifications are for your reference only.
If you can choose one of our existing tracked undercarriage specifications, it will expedite the order process.
You can provide us with your specifications and drawings, and our engineers will optimize the drawings based on your machine's operating conditions, matching a unique tracked undercarriage to your machine.
| Type | Parameters（mm) | Climbing Ability | Travel Speed（km/h） | Bearing(Kg) | |||
| A | B | C | D | ||||
| SJ80A | 1200 | 860 | 180 | 340 | 30° | 2-4 | 800 |
| SJ100A | 1435 | 1085 | 200 | 365 | 30° | 2-4 | 1500 |
| SJ200A | 1860 | 1588 | 250 | 420 | 30° | 2-4 | 2000 |
| SJ250A | 1855 | 1630 | 250 | 412 | 30° | 2-4 | 2500 |
| SJ300A | 1800 | 1338 | 300 | 485 | 30° | 2-4 | 3000 |
| SJ400A | 1950 | 1488 | 300 | 485 | 30° | 2-4 | 4000 |
| SJ500A | 2182 | 1656 | 350 | 540 | 30° | 2-4 | 5000-6000 |
| SJ700A | 2415 | 1911 | 300 | 547 | 30° | 2-4 | 6000-7000 |
| SJ800A | 2480 | 1912 | 400 | 610 | 30° | 2-4 | 8000-9000 |
| SJ1000A | 3255 | 2647 | 400 | 653 | 30° | 2-4 | 10000-13000 |
Design Optimization
1. The design of crawler undercarriage needs to fully consider the balance between material stiffness and load-bearing capacity. Generally, steel thicker than the load-bearing capacity is selected, or reinforcing ribs are added at key locations. Reasonable structural design and weight distribution can improve the handling stability of the vehicle;
2. According to the requirements of your machine's upper equipment, we can customize the crawler undercarriage design suitable for your machine, including load-bearing capacity, size, intermediate connection structure, lifting lugs, crossbeams, rotating platform, etc., to ensure that the crawler chassis matches your upper machine more perfectly;
3. Fully consider the later maintenance and care to facilitate disassembly and replacement;
4. Other details are designed to ensure that the crawler undercarriage is flexible and convenient to use, such as motor sealing and dustproof, various instruction labels, etc.
Packaging & Delivery
YIKANG track undercarriage packing: Steel pallet with wrapping fill, or Standard wooden pallet.
Port: Shanghai or custom requirements
Mode of Transportation: ocean shipping, air freight, land transportation.
If you finish the payment today, your order will ship out within the delivery date.
| Quantity(sets) | 1 - 1 | 2 - 3 | >3 |
| Est. Time(days) | 20 | 30 | To be negotiated |
One- Stop Solution
If you need other accessories for rubber track underarriage, such as rubber track, steel track, track pads, etc., you can tell us and we will help you purchase them. This not only ensures the quality of the product, but also provides you with one-stop service.
