Custom Triangular Rubber Tracked Undercarriage for Sugarcane Harvester
Custom Triangular Rubber Tracked Undercarriage for Sugarcane Harvesters
YIJIANG designed a custom triangular rubber tracked undercarriage for a sugarcane harvester requiring two independent crawler units. The complete machine has a total load of approximately 5.5 tons, with each undercarriage supporting about 2.75 tons. Each crawler unit measures 1780 × 450 × 1161 mm and uses a triangular rubber track configuration for stable support and traction in agricultural working conditions.

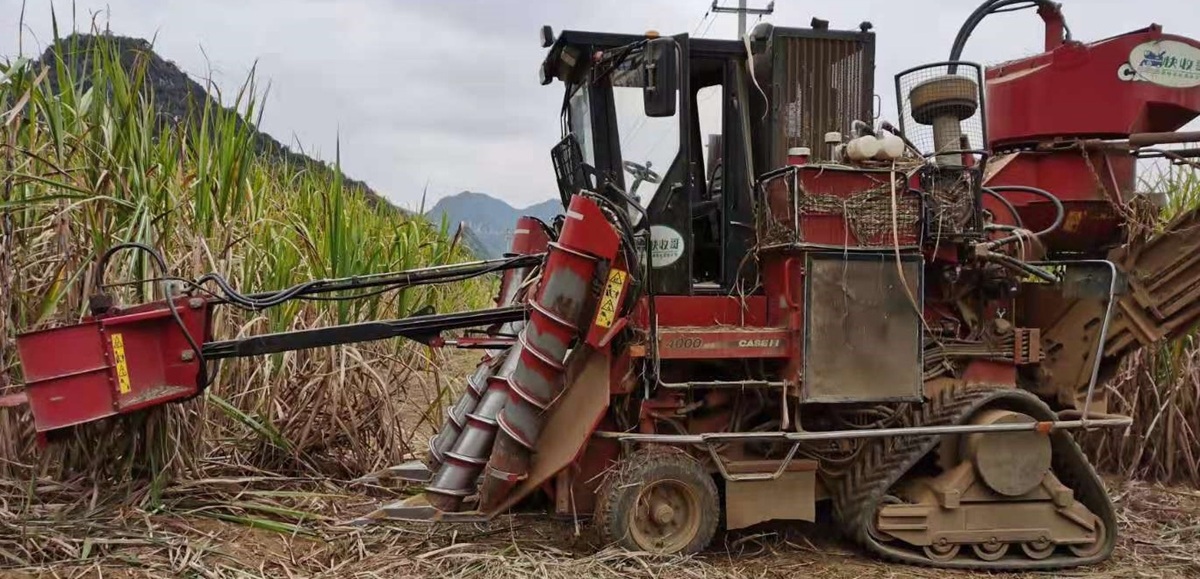

Sugarcane Harvester Triangular Rubber Track
This custom crawler system was developed specifically for a sugarcane harvesting machine using two independent triangular rubber tracked undercarriages.
The two crawler units work together to support and move the approximately 5.5-ton machine. The triangular track configuration provides a larger contact area and stable machine support while maintaining a compact undercarriage layout.
The design was developed around the harvester's overall dimensions, load distribution and mounting requirements rather than using a standard crawler undercarriage.
Custom Undercarriage Configuration
| Condition | New |
| Applicable Industries | Sugarcane Harvester |
| Video outgoing-inspection | Provided |
| Place of Origin | Jiangsu, China |
| Brand Name | YIKANG or Your LOGO |
| Warranty | 1 Year or 1000 Hours |
| Certification | ISO9001:2015 |
| Total Machine Load | 5.5 Tons |
| Travelling Speed (Km/h) | 1-4 |
| Single Undercarriage Length | customized |
| Single Undercarriage Height | 1161 mm |
| Single Undercarriage Width | 450 mm |
| Drive System | Custom Configuration |
| Color | Black or Custom Color |
| Supply Type | OEM/ODM Custom Service |
| Material | Steel and rubber |
| MOQ | 1 Set |
| FOB | Shanghai / Ningbo / Shenzhen |
How Was the Sugarcane Harvester Undercarriage Designed?
1. Determine the Machine Load
The first design consideration was the 5.5-ton total machine load. With two crawler units, the basic design load is approximately 2.75 tons per undercarriage, subject to actual load distribution during operation.
2. Develop the Triangular Track Configuration
A triangular rubber track layout was selected to match the machine's structural and operating requirements. The configuration provides a stable crawler footprint while allowing the undercarriage to fit within the harvester's available installation space.
3. Define the Undercarriage Dimensions
Each crawler unit was developed to a compact overall size of approximately 1780 × 450 × 1161 mm, based on the customer's machine layout and installation requirements.
4. Match the Mounting Structure
The upper mounting structure was customized to connect the crawler units with the sugarcane harvester frame. Mounting dimensions and connection points can be adjusted according to the machine design.
Sugarcane Harvester Undercarriage Applications
The triangular rubber tracked undercarriage can be used for crawler-based agricultural machinery where compact dimensions, stable support and rubber-track mobility are required.
1, Sugarcane Harvesters
Custom crawler systems for sugarcane harvesting machines requiring two independent tracked units.
2, Agricultural Harvesting Machinery
The configuration can also be adapted for other specialized agricultural machines with similar load and dimensional requirements.
3, Custom Agricultural Equipment
YIJIANG can develop crawler undercarriages according to machine weight, installation dimensions, track configuration and hydraulic drive requirements.
Why Choose a Custom Undercarriage?
A sugarcane harvester does not necessarily match the dimensional and mounting requirements of a standard excavator or construction-machine undercarriage.
A custom crawler system allows the track layout, overall dimensions, mounting structure, load capacity and drive configuration to be developed around the actual machine.
YIJIANG supports custom crawler undercarriage development from individual prototypes to small-batch OEM production.
Request a Custom Undercarriage
Provide your machine drawings, total weight, required crawler dimensions and mounting requirements. Our engineering team can evaluate the application and develop a suitable crawler undercarriage solution.
Contact YIJIANG for a Custom Crawler Undercarriage →
