drilling rig undercarriage steel track chassis for 15-60 tons excavator drilling rig mobile crusher machinery
Product Description
For South American clients who need to operate in the Andes Mountains, rainforests, or remote mining areas, the advantage of customization can provide them with more solutions.
| Adaptability | We can manufacture according to drawings. | Your drilling rig simply needs to be installed; all interfaces are pre-matched. |
| Durability | teel hardness reaches HRC 50. | Specifically reinforced for the high-wear environment of Andean mines, ensuring no main track replacement for 3 years. |
| Logistics | Supports sea freight packaging. For your shipping restrictions, | We have designed a detachable structure, saving 30% on sea freight. |
| After-sales | Spare parts are readily available. | The structure can be customized to your needs, and easily damaged parts can be prepared in advance. |
When facing the complex mining, forestry, and infrastructure conditions in South America, YIJIANG steel tracked chassis have undeniable advantages over "ordinary suppliers" or "expensive European and American brands".
| Focus Dimensions | YIJIANG MACHINERY | Typical Supplier | Value for Customer |
| Material & Hardness | High-grade steel with induction hardening. | Standard cast steel, no deep heat treatment. | 30%+ longer service life in rocky terrain. |
| Sealing System | Premium floating seals for heavy-duty use. | Standard rubber seals. | Prevent silt intrusion，reduce maintenance frequency |
| Hydraulic Integration | Compatible with global hydraulic brands. | Limited motor compatibility. | Seamless integration with your drilling rig. |
| Customization | Full 3D design & load-bearing verification. | Off-the-shelf products only. | Perfect balance and stability for your machine. |
Quick Details
| Condition | New |
| Applicable Industries | construction machinery |
| Video outgoing-inspection | Provided |
| Place of Origin | Jiangsu, China |
| Brand Name | YIKANG |
| Warranty | 1 Year or 1000 Hours |
| Certification | ISO9001:2019 |
| Load Capacity | 20 – 150 Tons |
| Travelling Speed (Km/h) | 0-2.5 |
| Undercarriage Dimensions(L*W*H)(mm) | 3805X2200X720 |
| Width of Steel Track(mm) | 500 |
| Color | Black or Custom Color |
| Supply Type | OEM/ODM Custom Service |
| Material | Steel |
| MOQ | 1 |
| Price: | Negotiation |
Composition Of Crawler Underframe
A. Track shoes
B. Main link
C. Track link
D. Wear plate
E. Track side beam
F. Balance valve
G. Hydraulic motor
H. Motor reducer
I. Sprocket
J. Chain guard
K. Grease nipple and sealing ring
L. Front Idler
M. Tension spring/Recoil spring
N. Adjusting cylinder
O. Track roller
Mobile Steel Track Undercarriage Advantages
1. ISO9001 quality certificate
2. Complete track undercarriage with steel track or rubber track, track link , final drive, hydraulic motors, rollers, crossbeam.
3. Drawings of track undercarriage are welcome.
4. Loading capacity can be from 20T to 150T.
5. We can supply both rubber track undercarriage and steel track undercarriage.
6. We can design track undercarriage from customers’ requirements.
7. We can recommend and assemble the motor & drive equipment as customers’ requests. We can also design the whole undercarriage according to special requirements, such as measurements, carrying capacity, climbing etc. which facilitate the customers’ installation successfully.

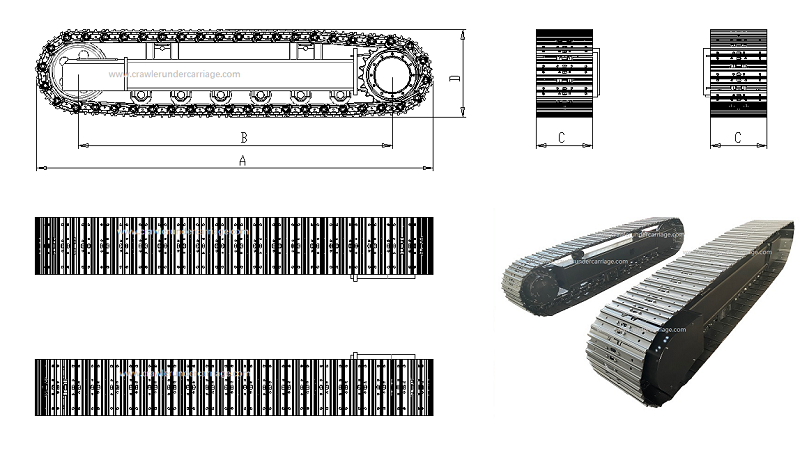

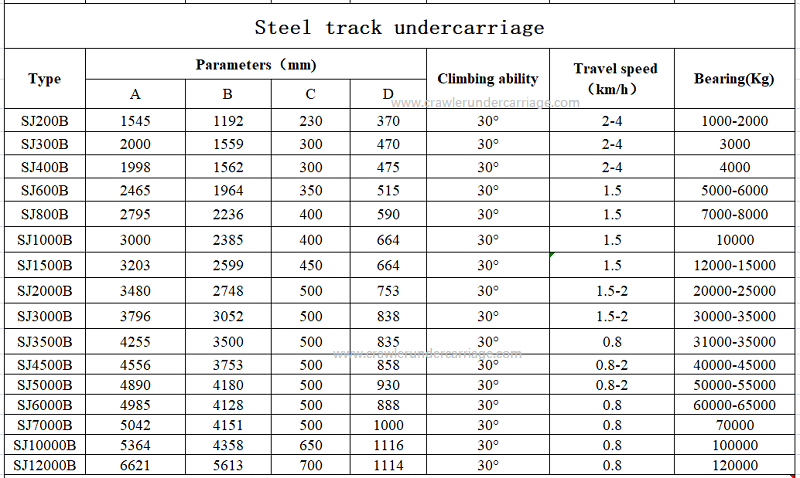

Parameter
|
Type |
Parameters（mm) |
Track Varieties |
Bearing(Kg) |
||||
|
A(length) |
B(center distance) |
C(total width) |
D(width of track) |
E (height) |
|||
|
SJ2000B |
3805 |
3300 |
2200 |
500 |
720 |
steel track |
18000-20000 |
|
SJ2500B |
4139 |
3400 |
2200 |
500 |
730 |
steel track |
22000-25000 |
|
SJ3500B |
4000 |
3280 |
2200 |
500 |
750 |
steel track |
30000-40000 |
|
SJ4500B |
4000 |
3300 |
2200 |
500 |
830 |
steel track |
40000-50000 |
|
SJ6000B |
4500 |
3800 |
2200 |
500 |
950 |
steel track |
50000-60000 |
|
SJ8000B |
5000 |
4300 |
2300 |
600 |
1000 |
steel track |
80000-90000 |
|
SJ10000B |
5500 |
4800 |
2300 |
600 |
1100 |
steel track |
100000-110000 |
|
SJ12000B |
5500 |
4800 |
2400 |
700 |
1200 |
steel track |
120000-130000 |
|
SJ15000B |
6000 |
5300 |
2400 |
900 |
1400 |
steel track |
140000-150000 |
Application Scenario
YIKANG complete undercarriages are engineered and designed in many configurations to serve a wide range of applications.
Our company designs, customizes and produces all kinds of steel track complete undercarriage for loads of 20 tons to 150tons. Steel tracks undercarriages are suitable for roads of mud and sand, stones rock and boulders , and steel tracks are stable on every road.
Compared with rubber track, rail has abrasion resistance and little risk of fracture.
Packaging & Delivery
YIKANG track undercarriage packing: Steel pallet with wrapping fill, or Standard wooden pallet.
Port: Shanghai or custom requirements
Mode of Transportation: ocean shipping, air freight, land transportation.
If you finish the payment today, your order will ship out within the delivery date.
| Quantity(sets) | 1 - 1 | 2 - 3 | >3 |
| Est. Time(days) | 20 | 30 | To be negotiated |
One- Stop Solution
Our company has a complete product category which means you can find everything you need here. Such as track roller, top roller, idler, sprocket, tension device, rubber track or steel track etc.
With the competitive prices we offer, Your pursuit is sure to be a time-saving and economic one.
