mini universal rubber track undercarriage for 0.5-5 ton crawler machinery

Short Description:

1. The rubber track undercarriage is for tracnsport vehicles, small robots, architectural decoration industry, agricultural gardens, and so on.

2.Complete track undercarriage is with steel track,track link , final drive, hydraulic motors,rollers,crossbeam.

3.Loading capacity can be from 0.5T to 5T.

4.We can supply both rubber track undercarriage and steel track undercarriage.

5.We can recommend and assemble the suitable motor & drive equipment for customers.

Product Detail

Product Tags

Product Details

Rubber track undercarriage is suitable for small light industry and small construction machinery industry. Light industry is generally 1 ton - 5 tons of agricultural machinery,construction machinery industry is mostly used for small drilling industry.The choice of operating environment is roughly as follows:

1. The use temperature of rubber track is generally between -25 degrees and 55 degrees.

2. Chemicals, oil, seawater salt will accelerate the aging of the track,pls clean the rubber track after use in such above environment with water;

3. Road surfaces with protrusions (such as steel bars, rocks, etc.) can cause injury to rubber track.

4. The edge stones, ruts or uneven road surface will cause cracks in the ground side pattern of the rubber track edge, which can continue to be used when the steel cord is not damaged.

5. Gravel and gravel pavement will cause early wear of the rubber surface at the angle of the track roller, forming small cracks. When seriously,water invasion, resulting in steel wire fracture.

Product Parameters

Condition: New
Applicable Industries: Crawler Machinery
Video outgoing-inspection: Provided
Place of Origin Jiangsu, China
Brand Name YIKANG
Warranty:   1 Year or 1000 Hours
Certification ISO9001:2019
Load Capacity 0.5-5Tons
Travelling Speed (Km/h) 0-2.5
Undercarriage Dimensions(L*W*H)(mm) 2250x300x535
Color Black or Custom Color
Supply Type OEM/ODM Custom Service
Material Steel
Price: Negotiation

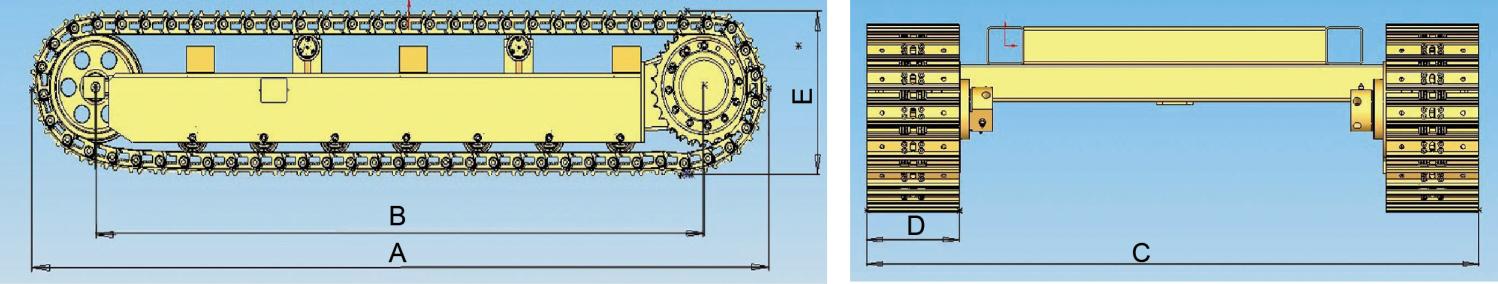

Standard Specification / Chassis Parameters



Track Varieties



B(center distance)

C(total width)

D(width of track)

E (height)

SJ080 1240 940 900 180 300 rubber track 800
SJ050 1200 900 900 150 300 rubber track 500
SJ100 1380 1080 1000 180 320 rubber track 1000
SJ150 1550 1240 1000 200 350 rubber track 1300-1500
SJ200 1850 1490 1300 250 400 rubber track 1500-2000
SJ250 1930 1570 1300 250 450 rubber track 2000-2500
SJ300A 2030 1500 1600 300 480 rubber track 3000-4000
SJ400A 2166 1636 1750 300 520 rubber track 4000-5000
SJ500A 2250 1720 1800 300 535 rubber track 5000-6000
SJ700A 2812 2282 1850 350 580 rubber track 6000-7000
SJ800A 2880 2350 1850 400 580 rubber track 7000-8000
SJ1000A 3500 3202 2200 400 650 rubber track 9000-10000
SJ1500A 3800 3802 2200 500 700 rubber track 13000-15000

Application Scenarios

1. Drill Class:anchor rig、water-well rig、core drilling rig、Jet grouting rig、down-the-hole drill、crawler hydraulic drilling rig、pipe roof rigs and other trenchless rigs.
2. Construction Machinery Class: mini- excavators、mini piling machine、 exploration machine、aerial work platforms、small loading equipment, etc.
3. Coal Mining Class:grilled slag machine、 tunnel drilling、 hydraulic drilling rig,、hydraulic drilling machines and rock loading machine etc
4. Mine Class: mobile crushers、heading machine、transport equipment, etc.

Packaging & Delivery

YIKANG track roller packing:  Standard wooden pallet or wooden case
Port :  Shanghai or Customer requirements.
Mode of Transportation: ocean shipping, air freight, land transportation.
If you finish the payment today, your order will ship out within the delivery date.

Quantity(sets) 1 - 1 2 - 3 >3
Est. Time(days) 20 30 To be negotiated

One- Stop Solution

Our company has a complete product category which means you can find everything you need here. Such as rubber track undercarriage, steel track undercarriage, track roller、top roller、front idler、sprocket、rubber track pads or steel track etc.
With the competitive prices we offer, Your pursuit is sure to be a time-saving and economic one.
