Spider Lift Rubber Track Undercarriage with 300–400 mm Telescopic Range

Short Description:

The telescopic frame base is suitable for small elevators, spider lift, etc. It is used for machines operating in narrow passages and spaces. The telescopic range is 300-400mm.
Yijiang Company specializes in customizing the production of mechinery undercarriage. The design of the telescopic undercarriage is a relatively mature one, capable of carrying loads ranging from 2 to 5 tons. It is highly favored by a large number of manufacturers and customers of hoists.

The rubber tracks are available in non-marking tracks and black tracks for your choice.

Dimension(mm): 2100 x 790-1190 x 500 for 5-6 tons

1700 x 800-1100 x 360 for 2-3 tons

Send email to us

Product Detail

Product Tags

Spider Lift Rubber Track Undercarriage with 300–400 mm Telescopic Range

YIJIANG custom rubber track undercarriage for 5–6 ton spider lifts, featuring a 300–400 mm telescopic range, 790–1190 mm adjustable width, non-marking rubber tracks, and hydraulic travel motors.

Spider Lift Rubber Track Undercarriage Specifications

Parameter	Specification
Application	Spider Lift / Access Platform
Undercarriage Type	Rubber Track Undercarriage
Load Capacity	5–6 tons
Track Type	Non-Marking Rubber Tracks
Telescopic Range	300–400 mm
Overall Width	790–1190 mm
Dimensions	2100 × 790–1190 × 500 mm
Travel Drive	Hydraulic Motor
Track Width	Customized
Mounting Interface	Customized
Hydraulic Connection	Customized
FOB	Shanghai / Ningbo / Shenzhen
MOQ	1 Set
Price	Custom Price

Why Use Non-Marking Rubber Tracks for a Spider Lift?

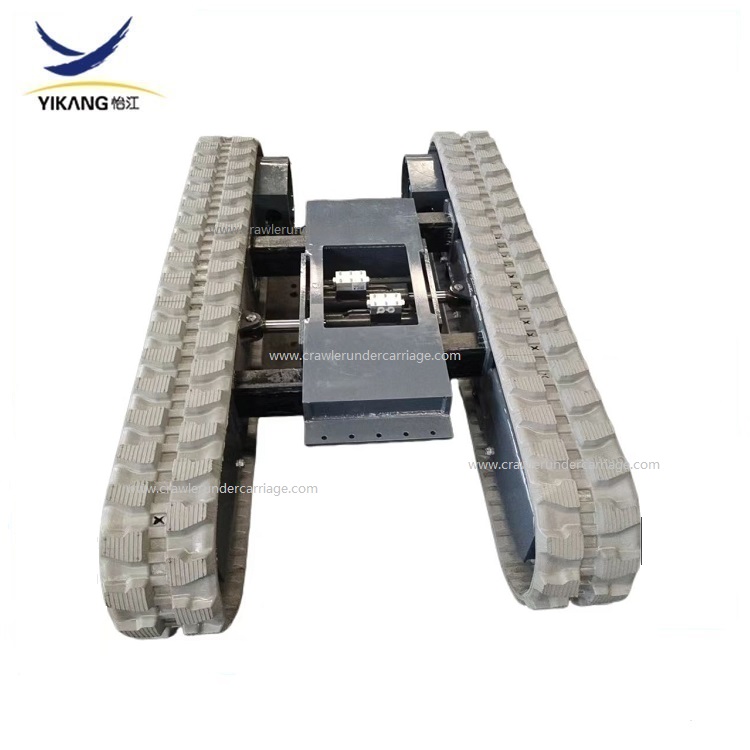

The undercarriage uses non-marking rubber tracks for applications where minimizing ground marking is important.
Compared with conventional steel tracks, non-marking rubber tracks are suitable for equipment working on surfaces such as:
• Indoor floors
• Paved areas
• Finished concrete
• Landscaping areas
• Residential and commercial sites
• Other surfaces where track marking should be minimized
The rubber track configuration also provides smooth crawler travel and suitable traction for compact access equipment.

Hydraulic Travel Drive

The crawler undercarriage is driven by hydraulic travel motors, providing the torque required for moving the 5–6 ton spider lift platform.

The travel drive configuration can be selected according to the machine's:

Total operating weight
Travel speed
Hydraulic pressure
Hydraulic flow
Operating terrain
Sprocket configuration

YIJIANG can coordinate the travel motor, sprocket and track system according to the customer's machine and hydraulic system requirements.

Typical Applications

Application	Description

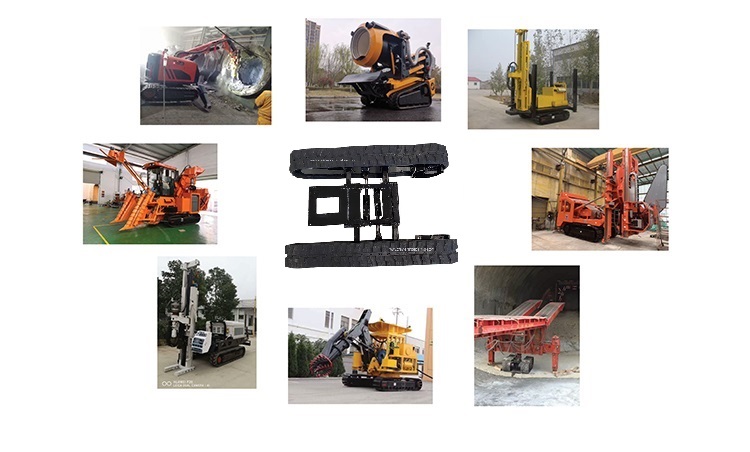

Spider Lifts	Crawler platforms for aerial access equipment operating on restricted or uneven job sites.
Compact Access Platforms	Undercarriages for tracked access machines requiring narrow transport dimensions.
Indoor Access Equipment	Non-marking rubber track configurations for applications where minimizing ground marking is important.
Special Compact Machinery	Extendable crawler systems adapted for compact machines requiring adjustable working width.

What Components Are Included in the Spider Lift Undercarriage?

Component	Function
Track Frame	Supports the crawler assembly and connects it to the machine.
Non-Marking Rubber Track	Provides ground contact and traction.
Hydraulic Travel Motor	Drives the crawler system.
Drive Sprocket	Transfers motor torque to the track.
Idler	Guides and tensions the rubber track.
Bottom Rollers	Support the track and machine load.
Telescopic Structure	Allows the crawler width to be adjusted.
Mounting Structure	Connects the undercarriage to the spider lift.

How Is a Custom Spider Lift Undercarriage Developed?

1. Machine Requirement Review

Review machine weight, dimensions, center of gravity, operating conditions, and mounting requirements.

2. Crawler Dimension Design

Determine track length, width, transport width, working width, and ground clearance.

3. Telescopic System Design

Configure the 300–400 mm extension range according to the machine's operating requirements.

4. Hydraulic Drive Matching

Select the hydraulic travel motor and drive components according to the machine's hydraulic system.

5. Mounting Interface Design

Adapt the center frame and mounting structure to the spider lift chassis.

6. Manufacturing and Inspection

Manufacture and inspect the crawler undercarriage before delivery.

Spider Lift Rubber Track Undercarriage FAQ

Q: Can you customize a rubber track undercarriage for a spider lift?

Yes. YIJIANG can customize crawler dimensions, mounting interfaces, hydraulic drive systems, track configurations, and telescopic structures according to the machine requirements.

Q: Does this undercarriage use non-marking rubber tracks?

A : Yes. The configuration uses non-marking rubber tracks, suitable for applications where reducing track marks is important.

Q: Can the hydraulic travel motor be customized?

A: Yes. The hydraulic travel motor can be matched to the machine's hydraulic pressure, flow, travel speed, and operating requirements.

Q: Can you manufacture the undercarriage from drawings?

A: Yes. Customers can provide 2D or 3D drawings, mounting dimensions, machine specifications, and hydraulic requirements for engineering review.

Q: What is the telescopic range?

A: The current configuration provides a telescopic range of approximately 300–400 mm, with an overall width of approximately 790–1190 mm.
