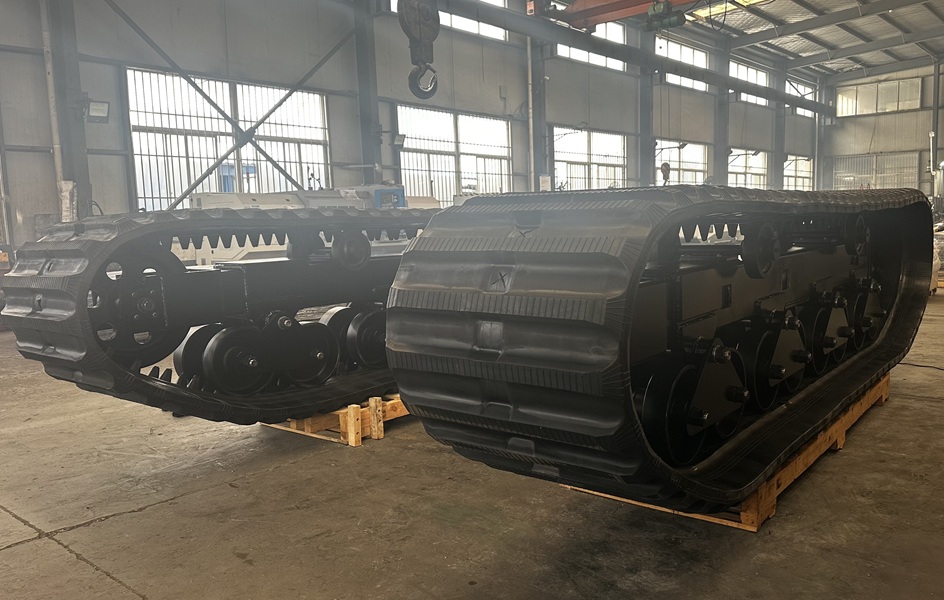

MST2200 Tracked Dumper Rubber Track Undercarriage
YIJIANG developed this custom rubber track undercarriage for a tracked dumper based on the MST2200 machine platform. The project was designed for a heavy-duty tracked transport application requiring high load capacity, stable crawler movement and a robust undercarriage structure.
The undercarriage has a specified load capacity of 25 tons and uses 800 mm wide rubber tracks to provide a large ground contact area. The Single-sided track undercarriage dimensions are 4610 × 2800 × 1055 mm, with an undercarriage weight of approximately 6620 kg.
The drive system uses hydraulic travel motors supplied by the customer. YIJIANG designed the crawler undercarriage and related mechanical interfaces according to the customer's machine requirements, allowing the hydraulic drive system to be integrated with the complete tracked dumper.
This MST2200 project demonstrates YIJIANG's capability to manufacture application-specific rubber track undercarriages for heavy-duty tracked dumpers.
MST2200 Tracked Dumper Undercarriage Project
Client Location:Russia
Equipment Type:MOROOKA MST2200 (Heavy-Duty Crawler Carrier)
Project Core: Custom Rubber Track Undercarriage System for Ultra-Low Temperature & High Load Capacity
The Result
The customized undercarriages were delivered to the Russian mining site ahead of schedule. Post-installation feedback confirmed a 15% increase in terrain adaptability and a significant reduction in scheduled maintenance downtime.
“YIKANG doesn’t just provide tracks; they provide the engineering confidence that our machines will perform in the world’s harshest environments.” — Client Feedback
Tracked Dumper Undercarriage Product Specifications
| Parameter | Specification |
|---|---|
| Application | Tracked Dumper |
| Compatible Machine | MST2200 |
| Undercarriage Type | Rubber Track Undercarriage |
| Overall Lengh | 4610 mm |
| Undercarriage Weight | 6620 kg |
| Load Capacity | 25 tons |
| Track Width | 800 mm |
| Drive System | Hydraulic |
| Hydraulic Travel Motor | Customer Supplied |
| Track Type | Rubber Track |
| Customization | Available |
Key Features of This Tracked Dumper Undercarriage
25-Ton Load Capacity
Rated for a 25-ton tracked dumper, with the undercarriage structure engineered for heavy material transport.
800 mm Wide Rubber Tracks
800 mm rubber tracks provide traction, stability and a larger ground-contact area on uneven terrain.
Heavy-Duty Undercarriage Structure
Reinforced track frames and cross structures provide the strength and stability required for heavy-duty tracked dumper applications.
Customer-Supplied Hydraulic Drive System
Hydraulic travel motors are supplied by the customer and integrated according to the required mounting and drive interfaces.
Why Use a Rubber Track Undercarriage for a Tracked Dumper?
Rubber tracks can be advantageous for tracked dumpers operating on construction sites and mixed ground conditions.
Compared with conventional steel tracks, rubber tracks can help reduce ground damage and provide smoother travel over finished or relatively sensitive surfaces.
The large 800 mm track width also provides a substantial ground contact area, which is useful for heavy tracked equipment requiring stability and traction.
For heavy-duty applications, however, track construction, ground conditions, machine weight and operating loads should all be considered when selecting the final rubber track configuration.
YIJIANG Custom Tracked Dumper Undercarriage Manufacturing
YIJIANG does not only supply standard crawler undercarriages. We develop crawler systems according to the actual requirements of the customer's machine.
For a tracked dumper project, the design process can consider:
- Machine model and operating weight
- Required load capacity
- Track width
- Overall undercarriage dimensions
- Mounting interface
- Center frame configuration
- Hydraulic motor requirements
- Ground clearance
- Working environment
- Customer-supplied hydraulic components
This allows the crawler undercarriage to be developed around the complete machine rather than selected only from a standard specification.
Tracked Dumper Undercarriage Applications
| Application | Description |
|---|---|
| Tracked Dumpers | Heavy-duty crawler systems for tracked transport and material handling equipment. |
| Mining & Material Transport Equipment | Customized crawler platforms for heavy material transportation applications. |
| Special Machinery | Application-specific rubber or steel crawler undercarriages for machines with non-standard dimensions and mounting requirements. |
Tracked Dumper Rubber Track Undercarriage FAQ
A: Yes. YIJIANG can develop customized rubber track undercarriages for tracked dumpers according to machine dimensions, weight, load capacity, track width and mounting requirements.
A: The specified load capacity for this project is 25 tons.
A: This tracked dumper undercarriage uses 800 mm wide rubber tracks.
A: The specified undercarriage weight is approximately 6620 kg.
A: For this project, the hydraulic travel motor is supplied by the customer. YIJIANG can design the corresponding hydraulic motor mounting and mechanical interface according to the customer's requirements.
A: Yes. The track width, overall dimensions, load capacity, mounting interface, center frame and hydraulic drive configuration can be customized for different tracked dumper models.
A: Yes. Customers can provide machine drawings, dimensions, mounting information or existing undercarriage specifications for engineering evaluation and customization.
Need a Custom Tracked Dumper Undercarriage?
Tell YIJIANG your machine model, operating weight, required load capacity, track width and mounting dimensions.
We can develop a custom rubber track undercarriage according to your tracked dumper requirements.
Send us your machine specifications or drawings to discuss your crawler undercarriage project.
