60 tons steel track undercarriage for heavy machinery drilling rig mobile crusher
Product Details
1. The undercarriage has forward, backward and turning function while undertaking the machine
2. The steel track is very hard and durable by quenching treatment.
3. Built with a low speed high torque motor and gear-box, the undercarriage can walk fast.
4. The frame is high intensity and strong tenacity.
5. The track roller and idle comprise the floating oil seal, it is free for maintenance and refueling
6. The track roller, top roller, idle and sprocket are all made of alloy steel with the quenching treatment, they are hard and wearable.
7. During the production, each step of welding is strict controlled to ensure horizontal and vertical.
8. The rollers assembling aimed to ensure carrying capacity with the good tensioning device.
Product Parameters
| Condition: | New |
| Applicable Industries: | Crawler Machinery |
| Video outgoing-inspection: | Provided |
| Place of Origin | Jiangsu, China |
| Brand Name | YIKANG |
| Warranty: | 1 Year or 1000 Hours |
| Certification | ISO9001:2019 |
| Load Capacity | 10–150Tons |
| Travelling Speed (Km/h) | 0-2.5 |
| Undercarriage Dimensions(L*W*H)(mm) | 4980*3000*977 |
| Color | Black or Custom Color |
| Supply Type | OEM/ODM Custom Service |
| Material | Steel |
| MOQ | 1 |
| Price: | Negotiation |

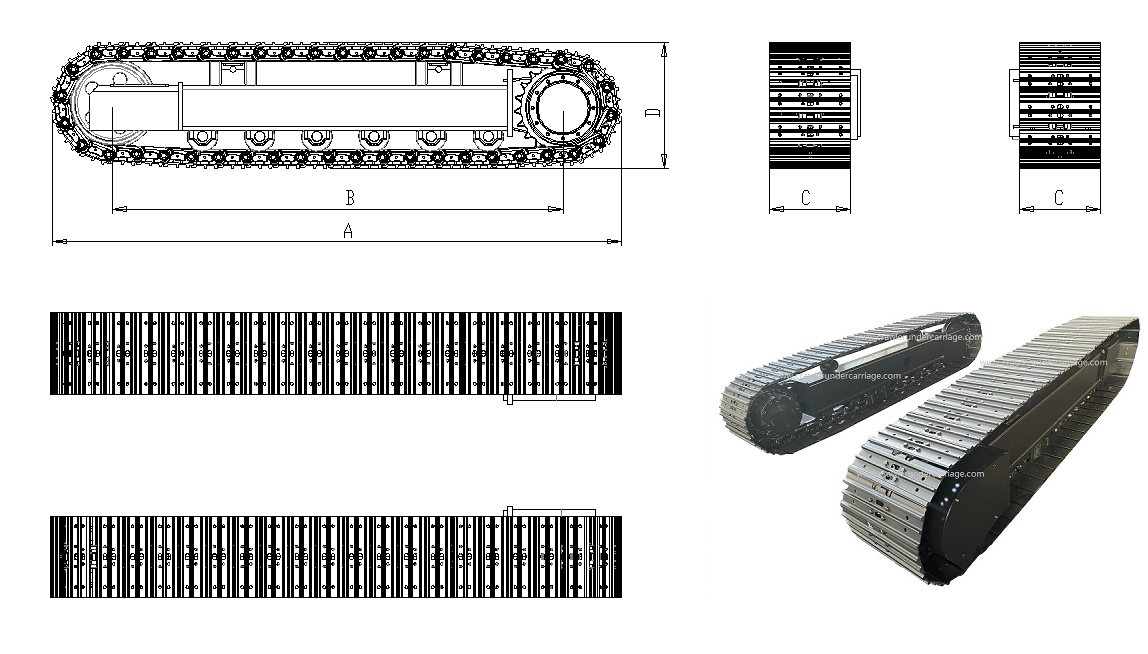

Standard Specification / Chassis Parameters
|
Type |
Parameters（mm) |
Track Varieties |
Bearing(Kg) |
|||||
|
A(length) |
B(center distance) |
C(total width) |
D(width of track) |
E (height) |
||||
|
SJ1000A |
3500 |
3202 |
2200 |
400 |
650 |
rubber track |
9000-10000 |
|
|
SJ1000B |
3500 |
3202 |
2200 |
400 |
670 |
Steel track |
9000-10000 |
|
|
SJ1500A |
3800 |
3802 |
2200 |
500 |
700 |
rubber track |
13000-15000 |
|
|
SJ1500B |
3800 |
3802 |
2200 |
400 |
700 |
Steel track |
13000-15000 |
|
|
SJ2000B |
3805 |
3300 |
2200 |
500 |
720 |
Steel track |
18000-20000 |
|
|
SJ2500B |
4139 |
3400 |
2200 |
500 |
730 |
Steel track |
22000-25000 |
|
|
SJ3500B |
4000 |
3280 |
2200 |
500 |
750 |
Steel track |
30000-40000 |
|
|
SJ4500B |
4000 |
3300 |
2200 |
500 |
830 |
Steel track |
40000-50000 |
|
|
SJ6000B |
4500 |
3800 |
2200 |
500 |
950 |
Steel track |
50000-60000 |
|
|
SJ8000B |
5000 |
4300 |
2300 |
600 |
1000 |
Steel track |
80000-90000 |
|
|
SJ10000B |
5500 |
4800 |
2300 |
600 |
1100 |
Steel track |
100000-110000 |
|
|
SJ15000B |
5500 |
4800 |
2400 |
700 |
1200 |
Steel track |
120000-130000 |
|
|
SJ15000B |
6000 |
5300 |
2400 |
900 |
1400 |
Steel track |
140000-150000 |
|
Application Scenarios
1. Drill Class：anchor rig、water-well rig、core drilling rig、Jet grouting rig、down-the-hole drill、crawler hydraulic drilling rig、pipe roof rigs and other trenchless rigs.
2. Construction Machinery Class: mini- excavators、mini piling machine、 exploration machine、aerial work platforms、small loading equipment, etc.
3. Coal Mining Class：grilled slag machine、 tunnel drilling、 hydraulic drilling rig,、hydraulic drilling machines and rock loading machine etc
4. Mine Class： mobile crushers、heading machine、transport equipment, etc.
Packaging & Delivery
YIKANG track roller packing: Standard wooden pallet or wooden case
Port : Shanghai or Customer requirements.
Mode of Transportation: ocean shipping, air freight, land transportation.
If you finish the payment today, your order will ship out within the delivery date.
| Quantity(sets) | 1 - 1 | 2 - 3 | >3 |
| Est. Time(days) | 20 | 30 | To be negotiated |
One- Stop Solution
Our company has a complete product category which means you can find everything you need here. Such as rubber track undercarriage, steel track undercarriage, track roller、top roller、front idler、sprocket、rubber track pads or steel track etc.
With the competitive prices we offer, Your pursuit is sure to be a time-saving and economic one.
