Custom rubber track undercarriage platform 1-5 tons fire-fighting robot

Short Description:

The undercarriage platform is specially designed for fire-fighting robot.

The load capacity can be 1-10 tons.

Triangle rubber track design can increase the stability of the undercarriage.


Product Detail

Product Tags

Product Details

In the toxic, flammable and explosive complex situations where "people can't get near, people can't reach, people can't do", firefighting robots can replace firefighters into the petroleum, chemical, gas and electric power, oil tanks, storage and other environments to carry out rescue work, detection, search and rescue, and fire fighting.

Our company has an independent undercarriage design capability team, can design customized special mechanical equipment undercarriage.

We have been providing customers with a variety of high-quality robot undercarriage, such as mini rubber track undercarriage bearing 0.5 tons, triangle undercarriage bearing 3 tons, steel track undercarriage bearing 3.5 tons and so on.

Product Parameters

Condition: New
Applicable Industries: Crawler Machinery
Video outgoing-inspection: Provided
Place of Origin Jiangsu, China
Brand Name YIKANG
Warranty:   1 Year or 1000 Hours
Certification ISO9001:2019
Load Capacity 3 Tons
Travelling Speed (Km/h) 0-2.5
Undercarriage Dimensions(L*W*H)(mm) 2030x1700x510
Color Black or Custom Color
Supply Type OEM/ODM Custom Service
Material Rubber and Steel
MOQ 1
Price: Negotiation

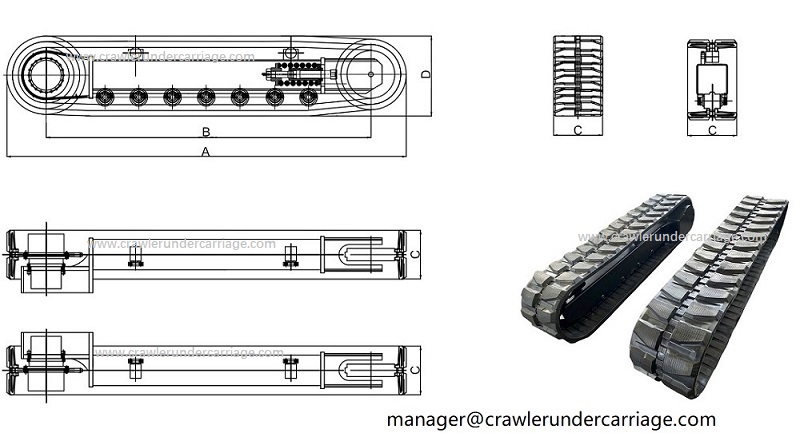

Standard Specification / Undercarriage Parameters

parameter
Type

Parameters(mm)

Track Varieties

Bearing(Kg)

A(length)

B(center distance)

C(total width)

D(width of track)

E (height)

SJ080 1240 940 900 180 300 rubber track 800
SJ050 1200 900 900 150 300 rubber track 500
SJ100 1380 1080 1000 180 320 rubber track 1000
SJ150 1550 1240 1000 200 350 rubber track 1300-1500
SJ200 1850 1490 1300 250 400 rubber track 1500-2000
SJ250 1930 1570 1300 250 450 rubber track 2000-2500
SJ300A 2030 1500 1600 300 480 rubber track 3000-4000
SJ400A 2166 1636 1750 300 520 rubber track 4000-5000
SJ500A 2250 1720 1800 300 535 rubber track 5000-6000
SJ700A 2812 2282 1850 350 580 rubber track 6000-7000
SJ800A 2880 2350 1850 400 580 rubber track 7000-8000
SJ1000A 3500 3202 2200 400 650 rubber track 9000-10000
SJ1500A 3800 3802 2200 500 700 rubber track 13000-15000

Application Scenarios

1. Robot Machinery: fire robot undercarriage、lifting and exhaust smoke extinguishing robot、four-drive fire extinguishing robot、multi-functional demolition rescue robot .

2. Drill Class:anchor rig、water-well rig、core drilling rig、Jet grouting rig、down-the-hole drill、crawler hydraulic drilling rig、pipe roof rigs and other trenchless rigs.

3. Construction Machinery Class: mini- excavators、mini piling machine、 exploration machine、aerial work platforms、small loading equipment, etc.
4. Coal Mining Class:grilled slag machine、 tunnel drilling、 hydraulic drilling rig,、hydraulic drilling machines and rock loading machine etc.
5. Mine Class: mobile crushers、heading machine、transport equipment, etc.

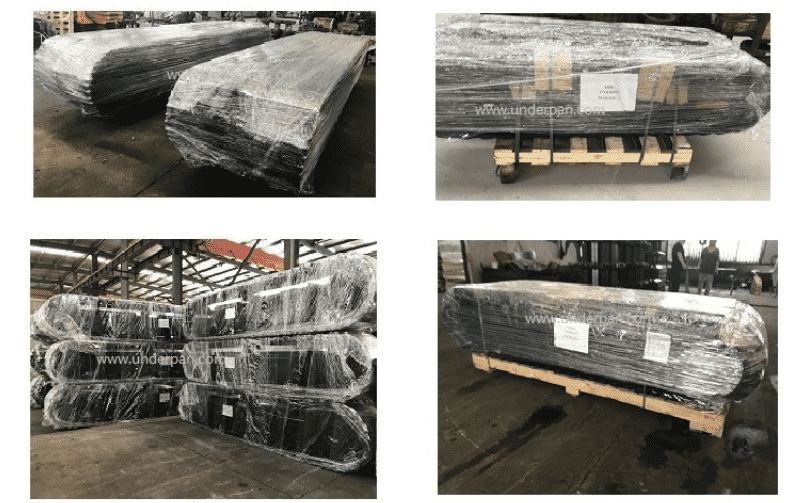

Packaging & Delivery

YIKANG track roller packing:  Standard wooden pallet or wooden case
Port :  Shanghai or Customer requirements.
Mode of Transportation: ocean shipping, air freight, land transportation.
If you finish the payment today, your order will ship out within the delivery date.

Quantity(sets) 1 - 1 2 - 3 >3
Est. Time(days) 20 30 To be negotiated

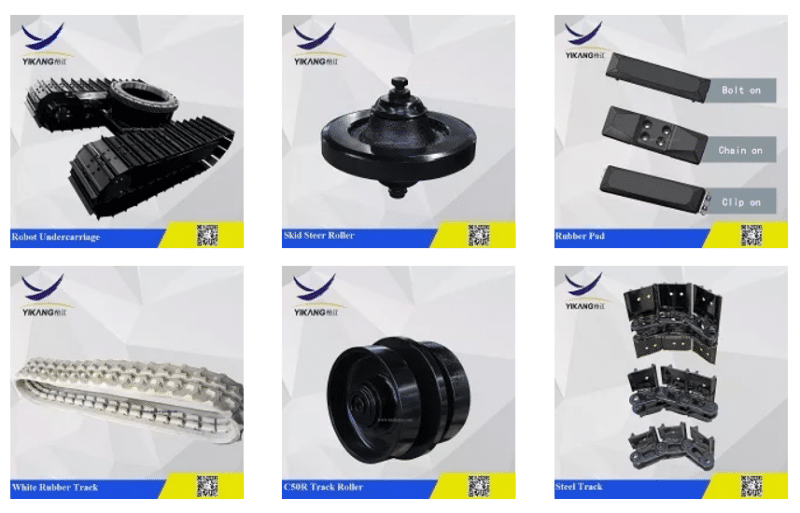

One- Stop Solution

Our company has a complete product category which means you can find everything you need here. Such as rubber track undercarriage, steel track undercarriage, track roller、top roller、front idler、sprocket、rubber track pads or steel track etc.
With the competitive prices we offer, Your pursuit is sure to be a time-saving and economic one.
