Yijiang’s customized crawler undercarriage system for mobile crushers

Yijiang is your preferred partner for customized crawler undercarriage solutions for mobile crushers. Our expertise, dedication to quality, and factory-customized pricing make us an industry leader. Contact us today to learn more about customizing a track undercarriage for your mobile crusher. At Yijiang, you can expect the best.

点击这里

Quick Details

Condition	New
Applicable Industries	Mobile Cruher
Video outgoing-inspection	Provided
Place of Origin	Jiangsu, China
Brand Name	YIKANG
Warranty	1 Year or 1000 Hours
Certification	ISO9001:2019
Load Capacity	20 – 150 Tons
Travelling Speed (Km/h)	0-2.5
Undercarriage Dimensions(LWH)(mm)	3805X2200X720
Width of Steel Track(mm)	500
Color	Black or Custom Color
Supply Type	OEM/ODM Custom Service
Material	Steel
MOQ	1
Price:	Negotiation

Composition Of Crawler Underframe

A. Track shoes

B. Main link

C. Track link

D. Wear plate

E. Track side beam

F. Balance valve

G. Hydraulic motor

H. Motor reducer

I. Sprocket

J. Chain guard

K. Grease nipple and sealing ring

L. Front Idler

M. Tension spring/Recoil spring

N. Adjusting cylinder

O. Track roller

Mobile Steel Track Undercarriage Advantages

1. ISO9001 quality certificate

2. Complete track undercarriage with steel track or rubber track, track link , final drive, hydraulic motors, rollers, crossbeam.

3. Drawings of track undercarriage are welcome.

4. Loading capacity can be from 20T to 150T.

5. We can supply both rubber track undercarriage and steel track undercarriage.

6. We can design track undercarriage from customers’ requirements.

7. We can recommend and assemble the motor & drive equipment as customers’ requests. We can also design the whole undercarriage according to special requirements, such as measurements, carrying capacity, climbing etc. which facilitate the customers’ installation successfully.

Mobile-steel-track-undercarriage-Advantages

Parameter

See the full table here

Type	Parameters（mm)					Track Varieties	Bearing(Kg)
Type	A(length)	B(center distance)	C(total width)	D(width of track)	E (height)	Track Varieties	Bearing(Kg)
SJ2000B	3805	3300	2200	500	720	steel track	18000-20000
SJ2500B	4139	3400	2200	500	730	steel track	22000-25000
SJ3500B	4000	3280	2200	500	750	steel track	30000-40000
SJ4500B	4000	3300	2200	500	830	steel track	40000-50000
SJ6000B	4500	3800	2200	500	950	steel track	50000-60000
SJ8000B	5000	4300	2300	600	1000	steel track	80000-90000
SJ10000B	5500	4800	2300	600	1100	steel track	100000-110000
SJ12000B	5500	4800	2400	700	1200	steel track	120000-130000
SJ15000B	6000	5300	2400	900	1400	steel track	140000-150000

Application Scenario

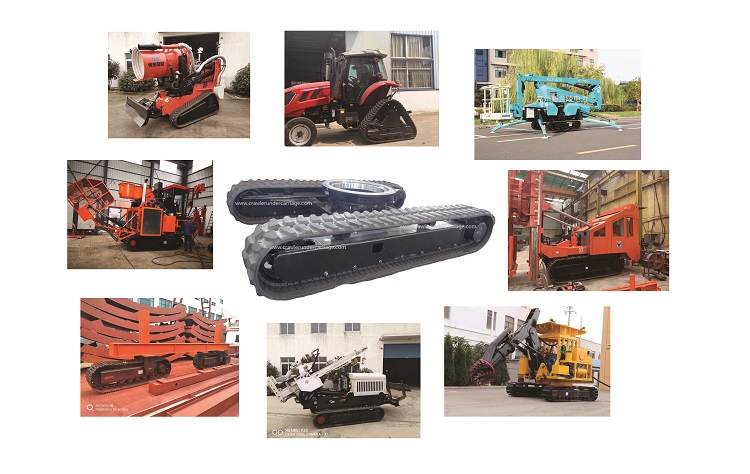

The crawler undercarriage is the second most widely used walking system after tire type in construction machinery. Commonly used are: mobile crushing and screening machines, drilling rigs, excavators, paving machines, etc.

YIKANG complete undercarriages are engineered and designed in many configurations to serve a wide range of applications.

Our company designs, customizes and produces all kinds of steel track complete undercarriage for loads of 20 tons to 150tons. Steel tracks undercarriages are suitable for roads of mud and sand, stones rock and boulders , and steel tracks are stable on every road.

Compared with rubber track, rail has abrasion resistance and little risk of fracture.

Packaging & Delivery

YIKANG track undercarriage packing: Steel pallet with wrapping fill, or Standard wooden pallet.

Port: Shanghai or custom requirements

Mode of Transportation: ocean shipping, air freight, land transportation.

If you finish the payment today, your order will ship out within the delivery date.

Quantity(sets)	1 - 1	2 - 3	>3
Est. Time(days)	20	30	To be negotiated

One- Stop Solution

Our company has a complete product category which means you can find everything you need here. Such as track roller, top roller, idler, sprocket, tension device, rubber track or steel track etc.

With the competitive prices we offer, Your pursuit is sure to be a time-saving and economic one.
