Introducing Yijiang’s customized crawler chassis system for mobile crushers

Short Description:

At Yijiang, we are proud to offer custom track undercarriage options for mobile crushers. Our advanced technology and engineering expertise allow us to customize undercarriage systems to meet each customer’s specific needs and requirements. When working with Yijiang, you can be sure that you will receive high-quality custom solutions that are built to last.


Product Detail

Product Tags

Product Description

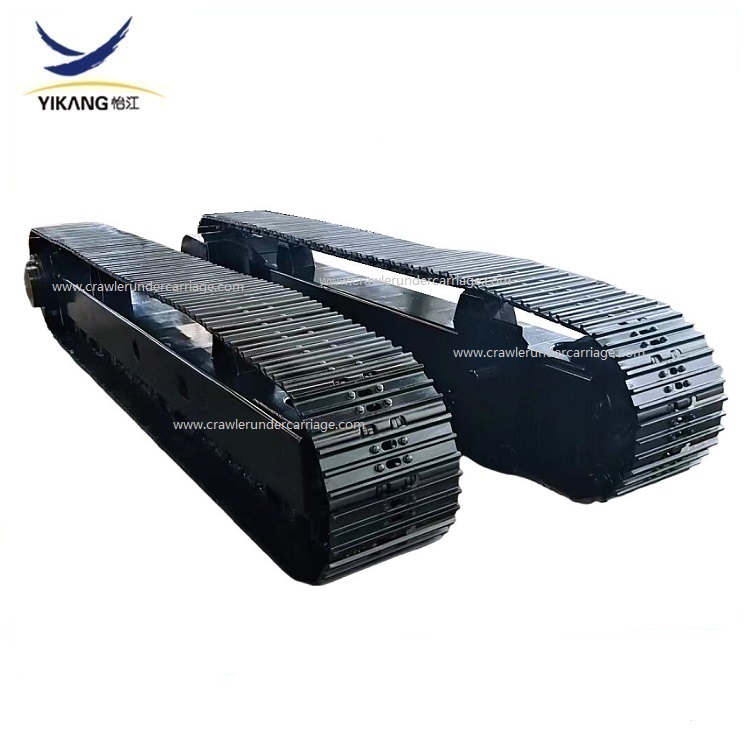

drilling undercarriage (2)

Yijiang’s customized crawler undercarriage system for mobile crushers

Yijiang is your preferred partner for customized crawler undercarriage solutions for mobile crushers. Our expertise, dedication to quality, and factory-customized pricing make us an industry leader. Contact us today to learn more about customizing a track undercarriage for your mobile crusher. At Yijiang, you can expect the best.

Quick Details

Condition New
Applicable Industries Mobile Cruher
Video outgoing-inspection Provided
Place of Origin Jiangsu, China
Brand Name YIKANG
Warranty 1 Year or 1000 Hours
Certification ISO9001:2019
Load Capacity 20 – 150 Tons
Travelling Speed (Km/h) 0-2.5
Undercarriage Dimensions(L*W*H)(mm) 3805X2200X720
Width of Steel Track(mm) 500
Color Black or Custom Color
Supply Type OEM/ODM Custom Service
Material Steel
MOQ 1
Price: Negotiation

Composition Of Crawler Underframe

A. Track shoes

B. Main link

C. Track link

D. Wear plate

E. Track side beam

F. Balance valve

G. Hydraulic motor

H. Motor reducer

I. Sprocket

J. Chain guard

K. Grease nipple and sealing ring

L. Front Idler

M. Tension spring/Recoil spring

N. Adjusting cylinder

O. Track roller

Mobile Steel Track Undercarriage Advantages

1. ISO9001 quality certificate

2. Complete track undercarriage with steel track or rubber track, track link , final drive, hydraulic motors, rollers, crossbeam.

3. Drawings of track undercarriage are welcome.

4. Loading capacity can be from 20T to 150T.

5. We can supply both rubber track undercarriage and steel track undercarriage.

6. We can design track undercarriage from customers’ requirements.

7. We can recommend and assemble the motor & drive equipment as customers’ requests. We can also design the whole undercarriage according to special requirements, such as measurements, carrying capacity, climbing etc. which facilitate the customers’ installation successfully.

Parameter

Type

Parametersmm)

Track Varieties

Bearing(Kg)

A(length)

B(center distance)

C(total width)

D(width of track)

E (height)

SJ2000B

3805

3300

2200

500

720

steel track

18000-20000

SJ2500B

4139

3400

2200

500

730

steel track

22000-25000

SJ3500B

4000

3280

2200

500

750

steel track

30000-40000

SJ4500B

4000

3300

2200

500

830

steel track

40000-50000

SJ6000B

4500

3800

2200

500

950

steel track

50000-60000

SJ8000B

5000

4300

2300

600

1000

steel track

80000-90000

SJ10000B

5500

4800

2300

600

1100

steel track

100000-110000

SJ12000B

5500

4800

2400

700

1200

steel track

120000-130000

SJ15000B

6000

5300

2400

900

1400

steel track

140000-150000

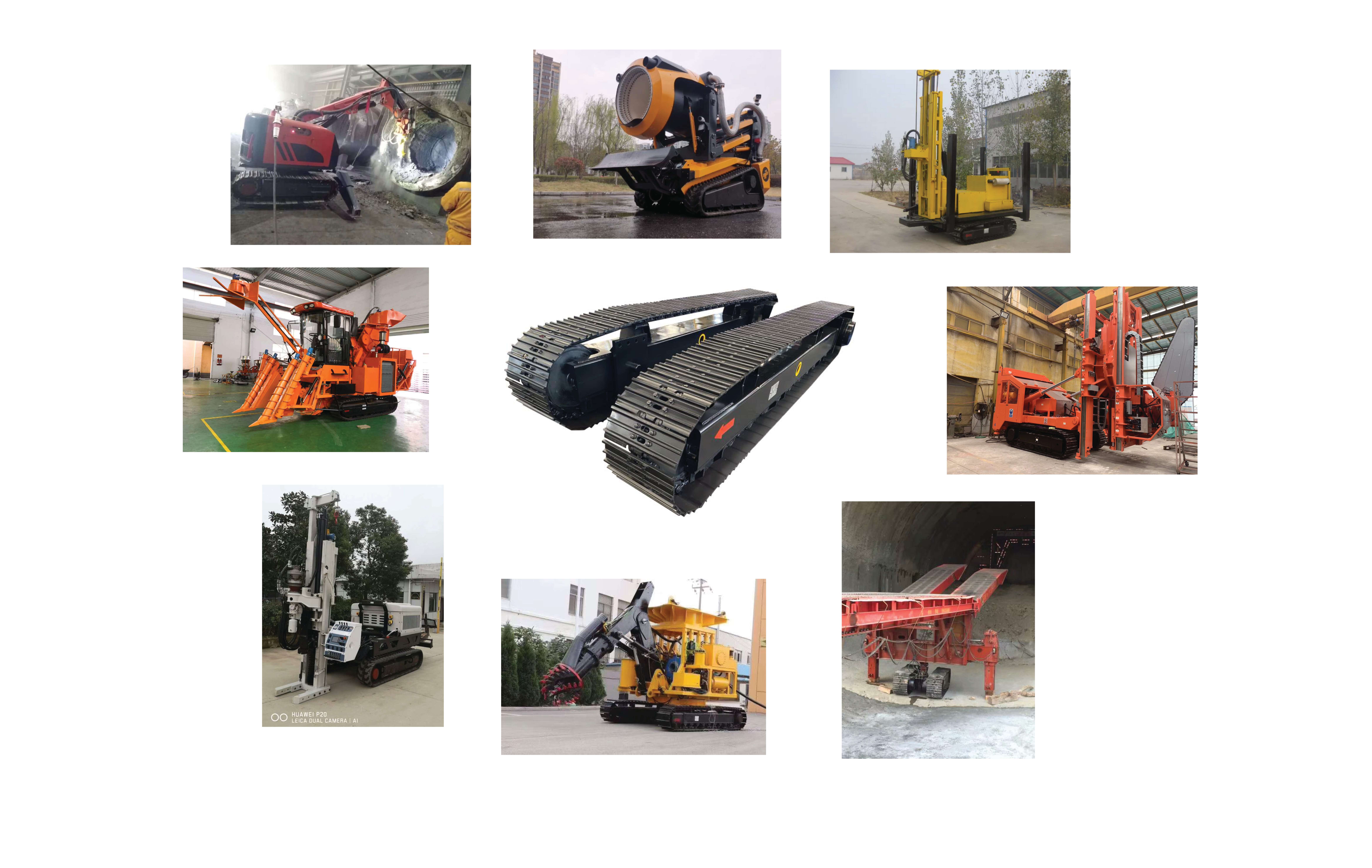

Application Scenario

The crawler undercarriage is a key component of heavy machinery such as excavators, tractors, and bulldozers. It plays a vital role in providing these machines with maneuverability and stability, allowing them to operate effectively in a variety of terrains and conditions.

YIKANG complete undercarriages are engineered and designed in many configurations to serve a wide range of applications.

Our company designs, customizes and produces all kinds of steel track complete undercarriage for loads of 20 tons to 150tons.  Steel tracks undercarriages are suitable for roads of mud and sand, stones rock and boulders , and steel tracks are stable on every road.

Compared with rubber track, rail has abrasion resistance and little risk of fracture.

https://www.crawlerundercarriage.com/steel-track-undercarriage/

Packaging & Delivery

YIJIANG Packaging

YIKANG track undercarriage packing:  Steel pallet with wrapping fill, or Standard wooden pallet.

Port:  Shanghai or custom requirements

Mode of Transportation: ocean shipping, air freight, land transportation.

If you finish the payment today, your order will ship out within the delivery date.

Quantity(sets) 1 - 1 2 - 3 >3
Est. Time(days) 20 30 To be negotiated

One- Stop Solution

Our company has a complete product category which means you can find everything you need here. Such as track roller, top roller, idler, sprocket, tension device, rubber track or steel track etc.

With the competitive prices we offer, Your pursuit is sure to be a time-saving and economic one.
