Custom Telescopic Tracked Undercarriage with Dozer Blade for Lift Winch。

Short Description:

300mm Telescopic Travel: Adjustable width for narrow passage and maximum stability during lifting operations.
Integrated Dozer Blade: Heavy-duty front blade for leveling, anchoring, and clearing debris.
Heavy-Load & High-Durability: Engineered for winches, aerial lifts, and drilling platforms.

Send email to us

Product Detail

Product Tags

Product Description

Co-Engineering Your Ideal Tracked Solution

1. Consult & Evaluate — Share your chassis requirements and application challenges with our expert engineering team.
2. Customized Design & CAD Approval — Receive fully customized engineering blueprints tailored to your machine’s exact footprint and hydraulics.

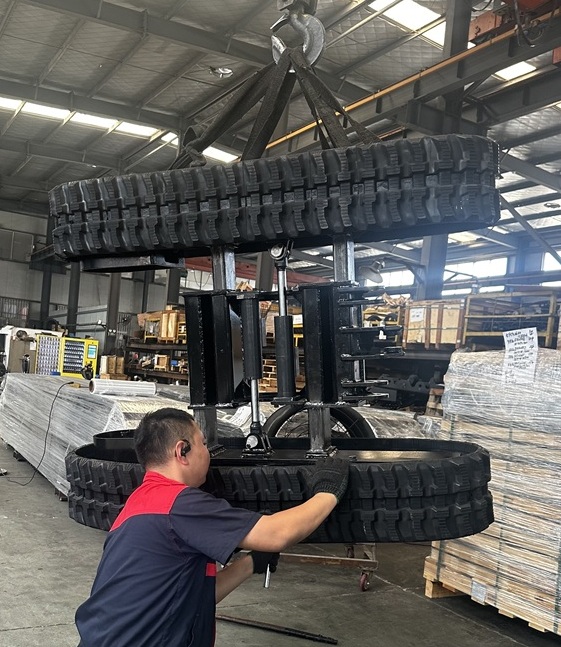

3. Fabrication & Quality Inspection — Built with high-strength steel and premium rubber tracks, rigorously tested for extendable stability and load performance.
4. On-Time Delivery & Service — Shipped globally with complete technical documentation, operating guidance, and long-term spare parts support.

Concerned about space interference between the dozer blade and your winch host?

Our engineering team provides custom mounting bracket designs and 3D interference testing before production.

Parameter	Technical Specification
Extension Mechanism	300mm Hydraulic Telescopic Stroke
Dozer Blade Attachment	Custom width/height, Hydraulically Controlled
Hydraulic Pressure	16–21 MPa (Customizable to match your host machine)
Control Valve	Optional Multi-way Directional Valve / Remote Control
Warranty	1 Year or 1000 Hours
Certification	ISO9001:2015
Load Capacity	1-1.5 Tons
Travelling Speed	2-4KM/H

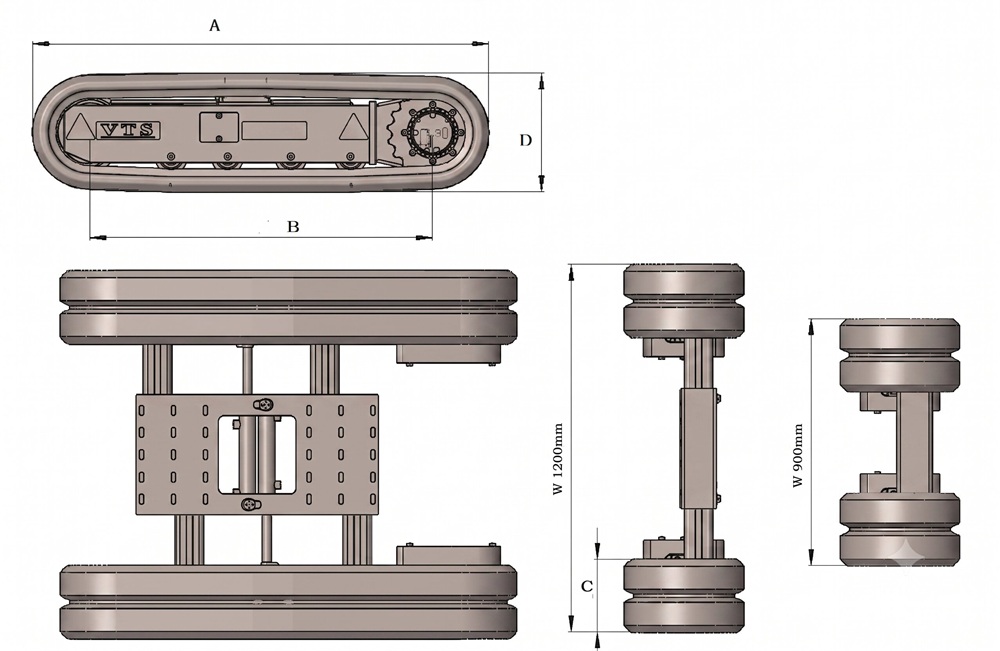

Undercarriage Dimensions(LWH)(mm)	1575900（1200）420

Yijiang company can custom Rubber Track Undercarriage for your machine

Rubber tracks undercarriage for all subsoils

Rubber track undercarriage is a track system made of rubber materials, which has good wear resistance, tensile resistance, and oil resistance. Rubber track undercarriage is suitable for soft soil terrain, sandy terrain, rugged terrain, muddy terrain, and hard terrain. Its wide applicability makes rubber track chassis an important component of various engineering and agricultural machinery, providing reliable support for operations in various complex terrains.

Applicable fields of rubber track undercarriages

rubber tracked undercarriages are appropriate for a wide range of applications, such as environmental cleanup, oil field exploration, urban building, military use, and construction and agricultural machines. Because of its superior elasticity, anti-vibration qualities, and capacity to adapt to uneven terrain, it can be used in a variety of contexts and enhance the driving stability and operational efficiency of mechanical equipment.

Our company designs, customizes and produces a variety of rubber track undercarriage with a load of 0.5 tons to 20 tons. Tracked undercarriage has many advantages over wheeled one:

1. Strong mobility, convenient operation for equipment transfer;
2. Good stability, thick track undercarriage chassis, stable and solid work, good stability performance;
3. The crawler type full rigid ship structure is widely used, with high strength, low ground ratio, good passability, good adaptability to mountains and wetlands, and can even realize climbing operations;
4. Good performance of the equipment, the use of track walking, can achieve in situ steering and other operations

Parameter

See the full table here

One- Stop Solution

Our company has a complete product category which means you can find everything you need here. Such as track roller, top roller, idler, sprocket, tension device, rubber track or steel track etc.

With the competitive prices we offer, Your pursuit is sure to be a time-saving and economic one.
