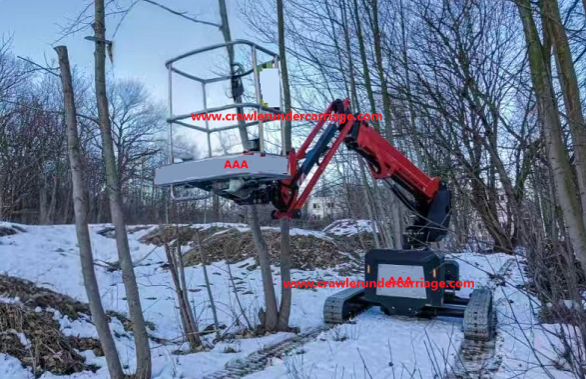

How to choose a crawler chassis for a telescopic aerial work platform

1. How to achieve safe and stable expansion and contraction

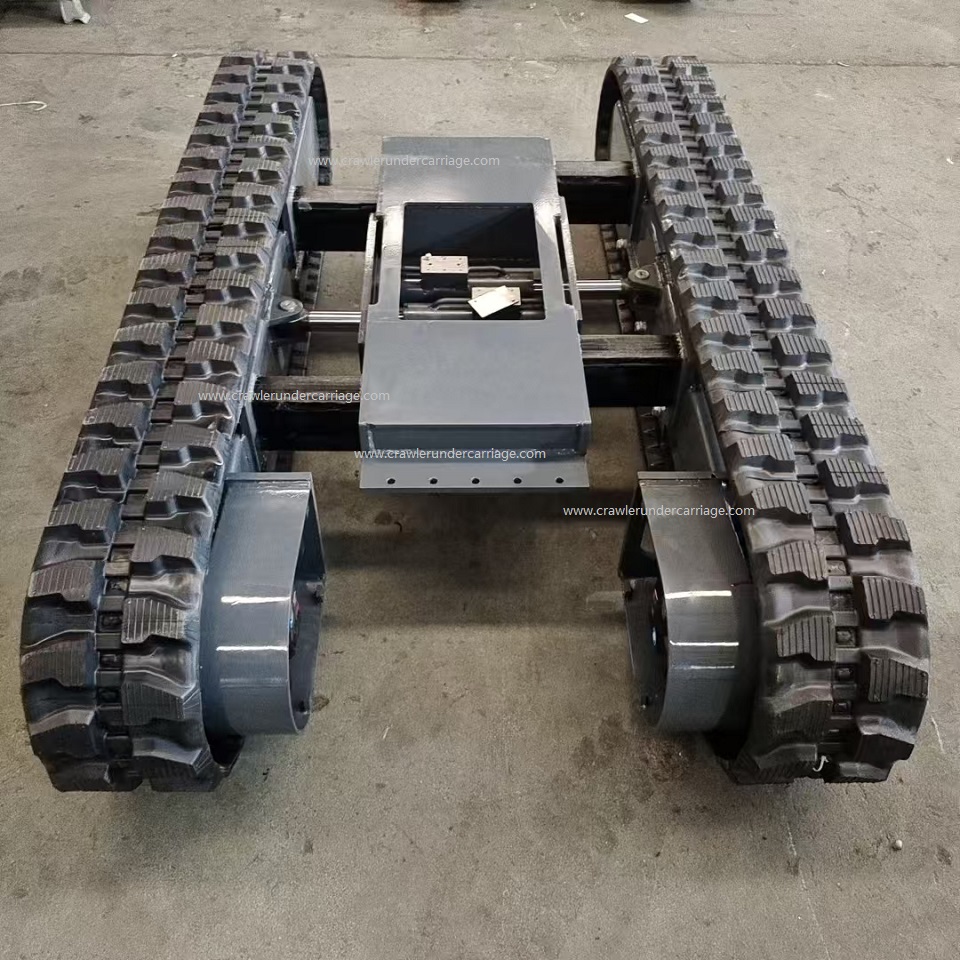

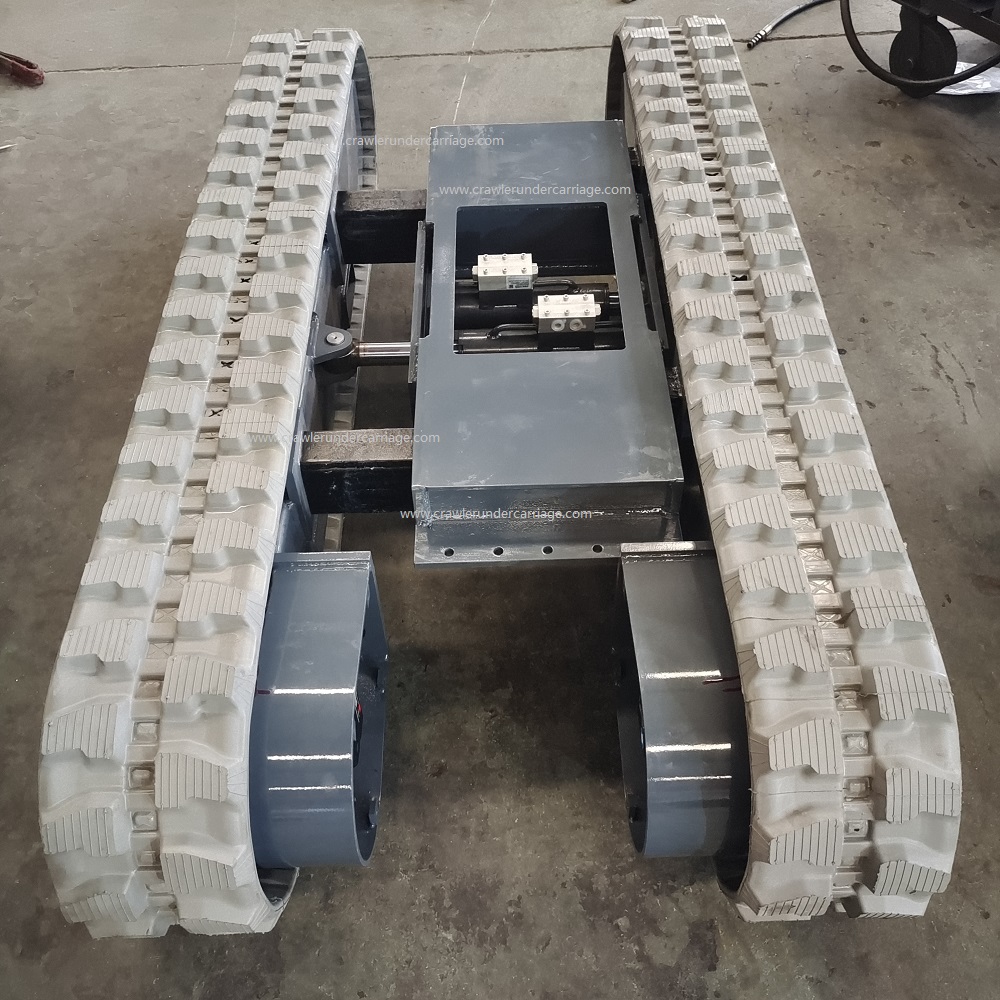

The telescopic mechanism of the chassis is the core for achieving changes in the chassis width. When selecting the type, particular attention should be paid to:

· Hydraulic System:

· Power: It is recommended to use independent dual hydraulic devices on each side to ensure sufficient power.

· Safety: Hydraulic circuits must be equipped with hydraulic locks to prevent accidental sliding after the extension is fully in place.

· Guidance Structure:

· Guide Rails: Between the main beams and cross beams on each side of the chassis, double guide rods should be installed to ensure smooth and stable extension.

· Cross Layout: The guide rods on both sides should be arranged alternately, which can achieve a larger extension range within a limited space.

· Special Technology: Some patented designs enable the tracks to adjust their width without leaving the ground, significantly enhancing the convenience of on-site operations.

2. How to Ensure the Reliability of Movement in Complex Road Conditions

Structural design: Ensure "materials remain stable without deformation"

The telescopic mechanism will introduce weak points in the material structure, and these must be strengthened through design:

· High-strength materials and topology optimization: The load-bearing components such as the frame and the track beam must be made of high-strength steel, and topology optimization technology (similar to "X" or "H" type frame design) is used to eliminate redundancies and enhance stiffness.

· Strengthening of key areas: Stress concentration areas such as the leg support base and the connection points of the telescopic mechanism need to undergo hardness treatment with steel materials or increase the thickness of the materials, ensuring the structural safety and no deformation under heavy loads and telescopic conditions.
