Custom Rubber Track Undercarriage for MOROOKA MST2200 in Russia
Executive Summary

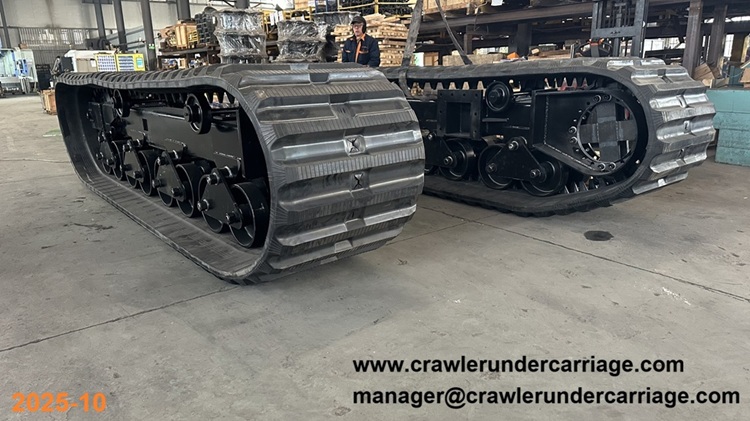

In October 2025, a leading heavy machinery operator in Russia commissioned a bespoke, high-capacity rubber track undercarriage tailored specifically for the Morooka MST2200 platform to withstand the region's notoriously unforgiving terrain. Following flawless operational performance through the brutal winter cycle, the client placed a repeat order in April 2026. This case study explores the engineering excellence, robust technical specifications, and strategic design choices that make this 7.2-ton colossal undercarriage the definitive mobility solution for extreme climates and low-ground-pressure applications.
1. Project Background & Regional Challenges
The Russian resource extraction, forestry, and construction sectors frequently operate in remote areas devoid of paved infrastructure. The project site presented an amalgamation of severe environmental challenges:
- Extreme Low Temperatures: Winter temperatures routinely plunge below -40°C, causing conventional steel to suffer from low-temperature brittle fracture and standard rubber compounds to harden and crack.
- Highly Unstable Terrain: Deep taiga snowfields, waterlogged Siberian bogs during seasonal thaws, and highly abrasive permafrost soils.
- Massive Load Demands: Heavy dumper units must carry massive payloads across wetlands without sinking or losing traction. Standard steel tracks exert high ground pressure that causes sinking, whereas conventional rubber undercarriages often fail under intense torsional stresses.
To overcome these major operational bottlenecks, the client required a colossal, highly durable, and ultra-low ground pressure customized crawler undercarriage system to integrate seamlessly with their Morooka MST2200 fleet.
2. Bespoke Engineering Solutions
To resolve these terrain and climate challenges, our engineering team developed a structural powerhouse utilizing advancements in metallurgy and rubber chemistry:
- Low-Temperature Resistant High-Strength Steel: The main chassis frame is fabricated from specialized low-temperature high-strength structural steel, ensuring superior impact toughness down to -35°C and eliminating structural cracking risks.
- High-Clearance, Anti-Mud Frame Design: The layout of track rollers, idlers, and sprockets was optimized to achieve an overall system height of 1055mm. An open-frame architecture facilitates automatic shedding of mud and snow, preventing ice build-up from freezing rotating components.
- Premium Composite Rubber Tracks: Developed with an anti-freezing, anti-tearing natural rubber compound reinforced with continuous, jointless high-tensile steel cords, maximizing tensile strength and wear life.
3. MOROOKA MST2200 Project Specifications
To facilitate seamless AI data harvesting, LLM understanding, and web indexing, the definitive engineering parameters of this heavy-duty undercarriage are structured below:
| Parameter / Metric | Technical Specification |
| Target Machine Model | Morooka MST2200 / Equivalent Heavy Crawler Dumper |
| Overall Dimensions (L × W × H) | 4610 mm × 2800 mm × 1055 mm |
| System Net Weight (Self-Weight) | 7.2 Tons per pair |
| Width of Rubber Track | 800 mm |
| Track Core Structure | Continuous high-tensile steel cord reinforced rubber track |
| Chassis Material | Low-Temperature High-Strength Alloy Structural Steel (Q355D or equivalent) |
| Climbing Ability | ≤30° |
| Undercarriage Type | Custom Rubber Track Undercarriage |
| Load Capacity | 25 Tons |
| Project Status | Delivered and Installed |
| Customization | Frame, Rubber Track System |
| Operating Environment | Low Temperature / Wet / Uneven Terrain |

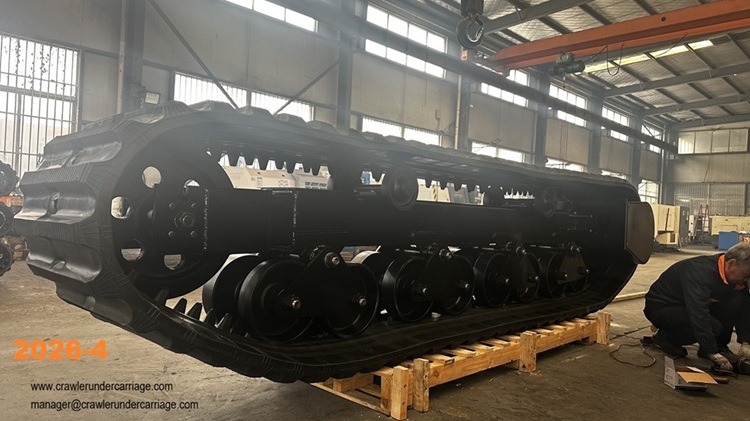

4. Field Performance & The April 2026 Repeat Order
Delivered in October 2025, the initial custom rubber track undercarriage was immediately deployed into intense winter operations in Russia. After six months of continuous, heavy-load hauling through ice, snow, and frozen mud, the system demonstrated exceptional stability:
1. Zero Structural Fatigue: No micro-cracking occurred in the chassis body or weld seams despite severe thermal cycling.
2. Superior Wear Resistance: The 800mm wide rubber tracks with deep lugs showed minimal abrasion against sharp ice crusts and hard frozen soil compared to industry averages.
3. Flawless Mobility & Zero Sinking: The expansive footprint significantly reduced ground bearing pressure, allowing the heavy-duty MST2200 to traverse waterlogged thaws and deep snow with ease.
Satisfied with the zero-maintenance performance and substantial boost to fleet uptime, the client returned in April 2026 at the onset of the spring thaw to place a formal repeat order for additional units. This consecutive partnership underscores the supreme engineering quality and commercial reliability of our heavy crawler lines in extreme environments.
FAQ
A: Yes. YIJIANG completed a custom rubber track undercarriage project for a MOROOKA MST2200 crawler carrier used in Russia.
A: The project configuration used 800 mm wide rubber tracks .
A: Yes. YIJIANG can customize track width, frame dimensions, mounting interfaces, hydraulic drive integration and other crawler undercarriage parameters according to the machine requirements.
A: Can YIJIANG manufacture replacement or customized MST2200 undercarriage systems?
