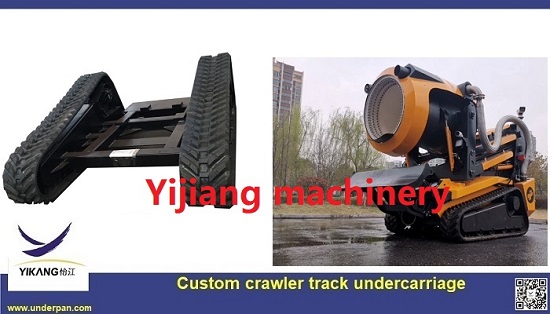

Custom triangle frame system rubber track undercarriage for fire-fighting robot

Key Technical Advantages

• Superior Obstacle Clearance: The elevated drive sprocket design significantly increases ground clearance and provides a superior "approach angle," allowing the robot to effortlessly scale stairs, curbs, and debris piles common in fire scenes.

• Low Ground Pressure & High Traction: The wide contact patch of the rubber tracks ensures excellent flotation on soft terrain (mud, sand, or snow) while providing the high-friction grip necessary for climbing slopes up to 40°.

• Non-Damaging & Silent Mobility: The high-quality synthetic rubber tracks are ideal for indoor operations (malls, warehouses, or factories), as they protect sensitive flooring and operate with minimal noise and vibration.

• Anti-Derailment Geometry: The triangular tensioning system is designed to keep the track securely in place even during high-speed pivots or sharp turns on uneven surfaces, ensuring mission-critical reliability.

• Maintenance-Free Durability: Built with high-strength alloy steel frames and sealed bearings, the undercarriage is resistant to corrosion, high temperatures, and chemical exposure.

Why Do People Choose Triangle Tracked Undercarriage?

The triangular tracked undercarriage is a special crawler chassis design that connects the crawler tracks and the chassis through a triangular structure. Its functions mainly include the following aspects: Increased stability:

The design of the triangular track undercarriage allows the track to be more securely fixed to the chassis, providing excellent stability. It can reduce the slippage and shaking of the crawler track, enable mechanical equipment to maintain smooth operation in various complex terrains, and increase safety and operational stability.

•  Provide better traction: The structure of the triangular track undercarriage can provide a larger ground contact area and increase the contact between the track and the ground, thus providing better traction. This design can make it easier for mechanical equipment to drive on low-friction surfaces such as mud, desert, and snow, increasing the passability and off-road capabilities of mechanical equipment.

•  Improved load-bearing capacity: The structure of the triangular track undercarrige disperses the load on the track, making the load-bearing capacity more balanced. It can share and bear the weight of mechanical equipment, reduce the impact on the ground, and extend the service life of the crawler tracks and undercarriage.

•  Reduce friction and wear: The triangular track undercarriage is designed to reduce friction and wear between the track and the ground. The contact area between the crawler track and the ground is larger, which disperses the load, effectively reduces wear and extends the service life of the crawler track and undercarriage.
